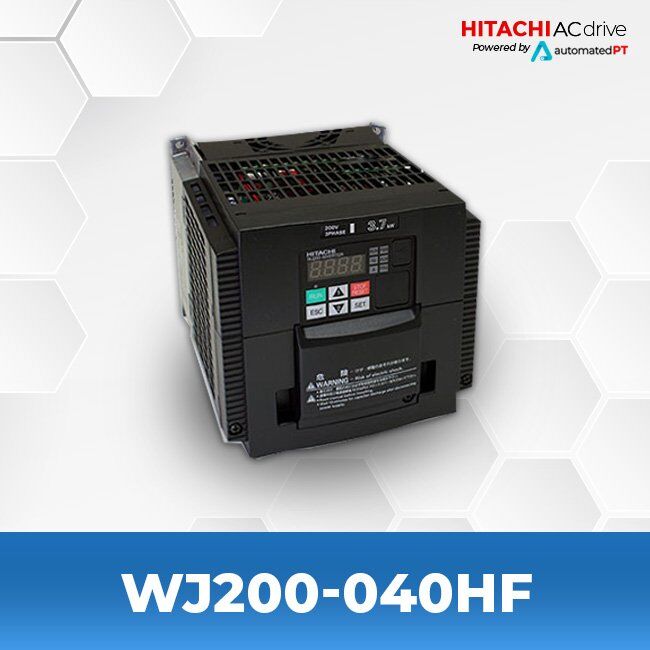

Hitachi WJ200 Series WJ200-040HF

$468.00

10 in stock

  • Series: WJ200
  • 5 Horsepower(HP)
  • 3.75 Kilowatt (KW)
  • 400 Volts
  • 9.2 Amps
  • 3 Phase
  • 4.6 pounds

Inverter, 400 volt, 3 phase, 5 CT (7.5 VT) HP, 9.2 CT (11.1 VT) Amps Input voltage: 400 volt, 3 phase, 5 CT (7.5 VT) HP

Hitachi WJ200 Series WJ200-040HF

FREE SHIPPING on the WJ200 Series Inverters (ground service using our choice of carrier, within the contiguous United States only) MODEL NO. WJ200-040HF Features:

  • High starting torque and dramatically improved speed stability thanks to advanced sensorless vector control
  • Simplified autotuning procedure
  • Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
  • Dynamic braking transistor in all models
  • EasySequence (EzSQ) PLC-like functionality built in
  • Simple position control capability
  • Capable of driving permanent magnet as well as standard induction motors
  • Dual rated for CT/VT applications
  • New and more effective trip avoidance functions, safe-stop function and much more…

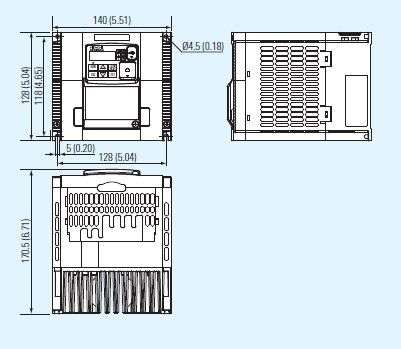

  • Height: 5.04 Inches
  • Width: 5.51 Inches
  • Depth: 6.71 Inches
  • Weight: 7 Lb

Light Duty (Variable Torque) Attributes

  • 5.5 Kilowatt (KW)
  • 7.5 Horsepower (HP)
  • 11.1Amps(A)
Manuals and Specifications:
Order your Hitachi WJ200, hitachi ac drive sales, hitachi ac drives, hitachi drives, hitachi, hitachi vfd’s today.


Video

How to set up Hitachi Inverters


Hitachi Inverters -PID Control


Hitachi Inveter -How to Enable Dynamic Braking


Accessories

$24.70

  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • OPE-Srmini NEMA4X Option Kit

Out of stock
$87.75

  • Filters
  • WJ200 Input Capacitive Noise Filter
  • 6 lbs

$6.50

  • Compatible with NES1,SJ700D,WJ200,X200
  • 0Drive Option(HP)
  • Extension Cable 1m(KW)

$9.75

  • Compatible with NES1,SJ700D,WJ200,X200
  • Drive Option
  • Extension Cable 3m(KW)

Out of stock
$57.20

  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • Standard Operator

$188.50

  • Compatible with WJ200
  • Drive Options
  • Potentiometer Option
  • EtherCAT option board
  • 2 lbs

$91.00

  • Compatible with WJ200
  • Drive Options
  • Potentiometer Option
  • Functional safety option board
  • 2 lbs

$188.50

  • Compatible with WJ200
  • Drive Options
  • Potentiometer Option
  • Profibus-DP option board
  • 2 lbs

$253.50

  • Compatible with WJ200
  • Drive Options
  • Potentiometer Option
  • ProfiNet option board
  • 2 lbs

$62.40

  • Compatible with WJ200
  • Drive Option
  • WJ200 Conduit Box (NEMA 1)
"
