Inverter, 200 volt, 1 phase, 1 CT (1.5 VT) HP, 5.0 CT (6.0 VT) Amps Input voltage: 200 volt, 1 phase, 1 CT (1.5 VT) HP

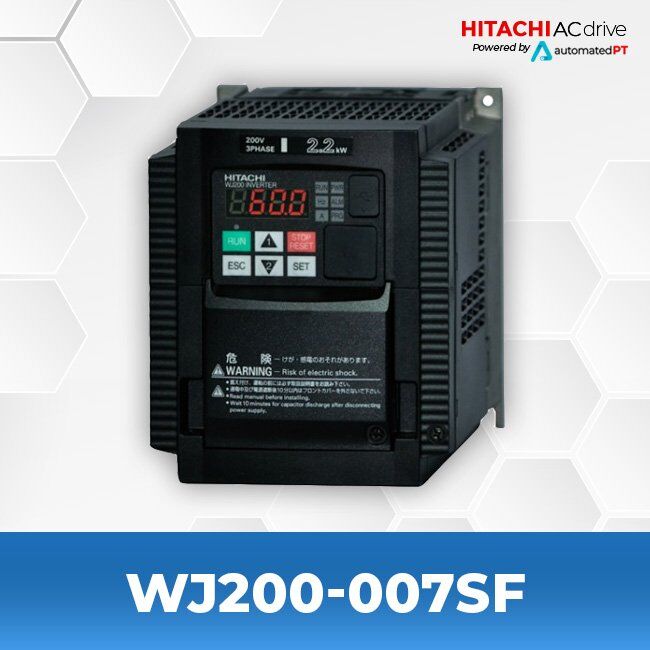

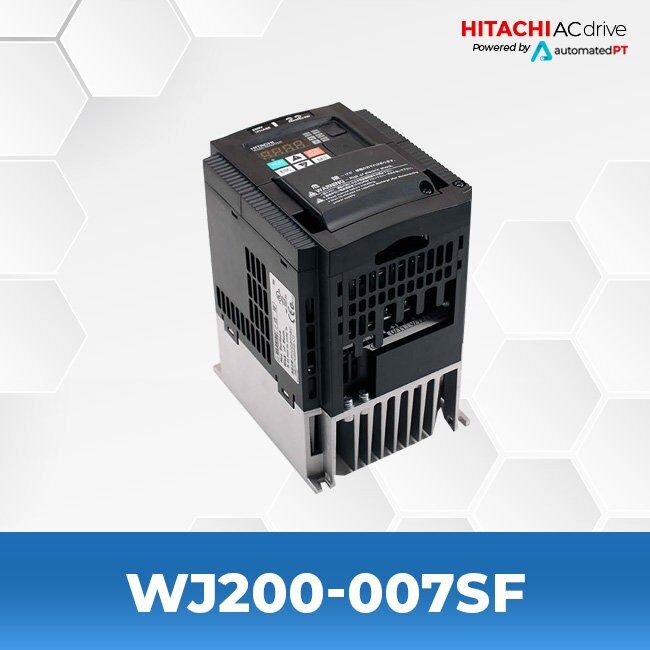

Hitachi WJ200 Series WJ200-007SF

MODEL NO. WJ200-007SF Features:

• High starting torque and dramatically improved speed stability thanks to advanced sensorless vector control
• Simplified autotuning procedure
• Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
• Dynamic braking transistor in all models
• EasySequence (EzSQ) PLC-like functionality built in
• Simple position control capability
• Capable of driving permanent magnet as well as standard induction motors
• Dual rated for CT/VT applications
• New and more effective trip avoidance functions, safe-stop function and much more…

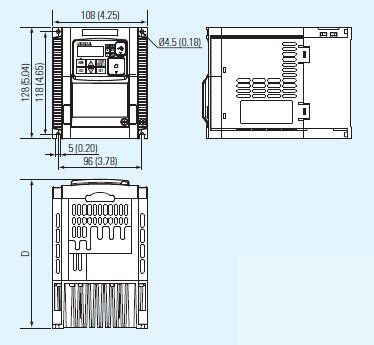

• Height: 5.04 Inches
• Width: 4.25 Inches
• Depth: 6.71 Inches
• Weight: 6 Lb

Light Duty (Variable Torque) Attributes

• 1.1 Kilowatt (KW)
• 1.5 Horsepower (HP)
• 6Amps(A)

Quick Start Guide	Hitachi WJ200 Quick Start Guide
Quick Reference Guide	Hitachi WJ200 Quick Reference Guide
Instruction Manual	Hitachi WJ200 Instruction Manual
Brochure	Hitachi WJ200 Brochure
