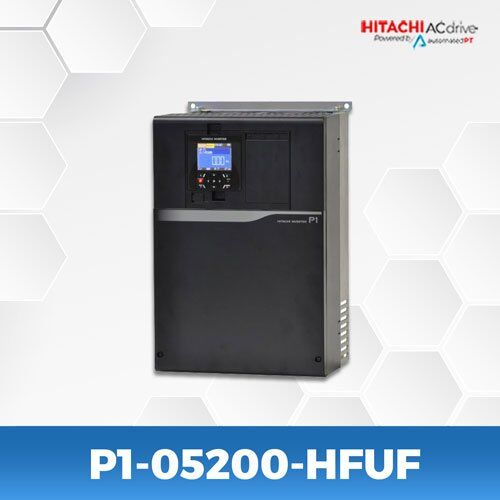

Hitachi SJP1 – P1-05200-HFUF

Series: SJP1
350 Horsepower(HP)
250 Kilowatt (KW)
380-480 Volts
520 Amps
3 Phase
275.5 pounds

Description

SPECIFICATIONS

Model Name	P1-05200-HFUF
Series	SJ-P1 Series
Voltage Class	380-480 V AC (3-Phase)
Applicable Motor Capacity (VLD / LD / ND)	250 kW / 250 kW / 220 kW
Rated Output Current (VLD / LD / ND)	520 A / 481 A / 450 A
Overload Capacity (VLD / LD / ND)	VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s
Main Power Supply	3-Phase 380-500 V AC, 50/60 Hz
Control Power Supply	1-Phase 380-500 V AC
Allowed Voltage Range	323-550 V AC
Frequency Fluctuation	+/- 5 percent
Required Power Supply Capacity (VLD / LD / ND)	472 kVA / 436 kVA / 408 kVA

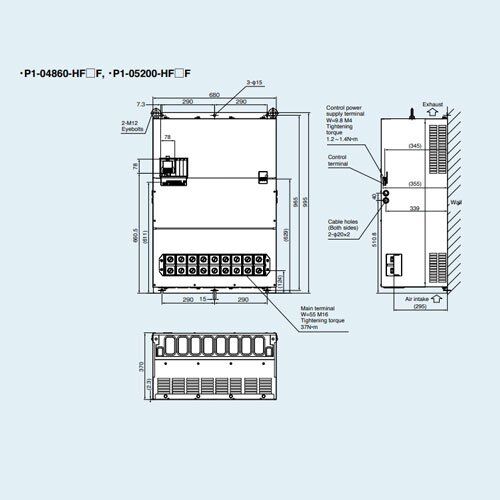

Dimensions (W x H x D)	26.77 x 39.17 x 14.57 in

Manuals and Specifications

Users Guide	Hitachi SJP1 Users Guide
Quick Start Guide	Hitachi SJP1 Quick Start Guide
Catalog	Hitachi SJP1 Catalog
Brochure	Hitachi SJP1 Brochure
Basic Guide	Hitachi SJP1 Basic Guide

SERIES DESCRIPTION

The SJ-P1 400 V P1-05200-HFUF inverter is designed for very high power industrial drives around 220 kW, delivering robust torque, flexible control modes, and comprehensive protection and monitoring.
