Hitachi SJP1-P1-02130-HFUF
$7,160.30
49 in stock
- Series: SJP1
- 125 Horsepower(HP)
- 90 Kilowatt (KW)
- 380-480 Volts
- 180 Amps
- 3 Phase
- 121 pounds
SPECIFICATIONS
| Model Name | P1-02130-HFUF |
| Series | SJ-P1 Series |
| Voltage Class | 380-480 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 110 kW (150 HP) / 110 kW (150 HP) / 90 kW (120 HP) |
| Rated Output Current (VLD / LD / ND) | 213.0 A / 195.0 A / 180.0 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s |
| Main Power Supply | 3-Phase 380-500 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 380-500 V AC |
| Allowed Voltage Range | 323-550 V AC |
| Frequency Fluctuation | +/- 5 percent |
| Required Power Supply Capacity (VLD / LD / ND) | 193.2 kVA / 176.9 kVA / 163.3 kVA |

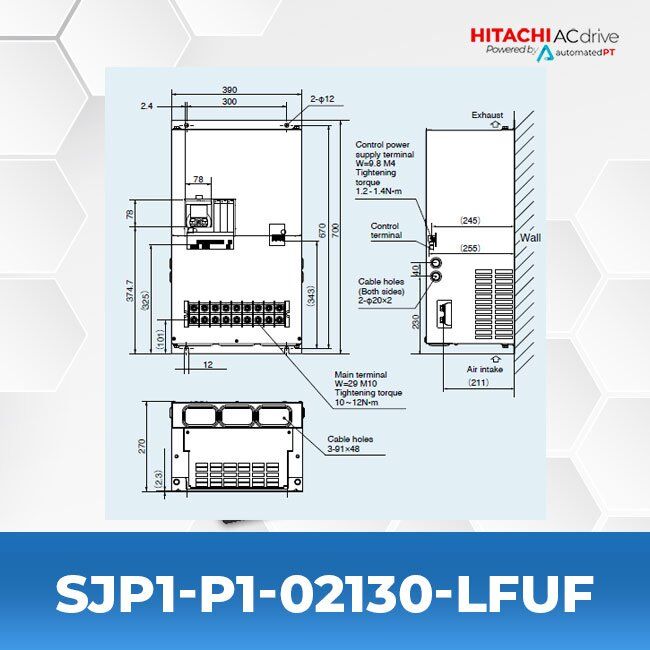

| Dimensions (W x H x D) | Refer to SJ-P1 400 V mechanical dimensions in catalog |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
The SJ-P1 400 V P1-02130-HFUF supports 120 HP normal duty loads, suitable for high power pumps, fans, and process machinery.
Features
- High capacity 400 V class drive with triple duty ratings
- Vector control for precise speed and torque control
- Built in PID, logic, arithmetic, and timing functions
- Energy optimization and sleep functions for large systems
