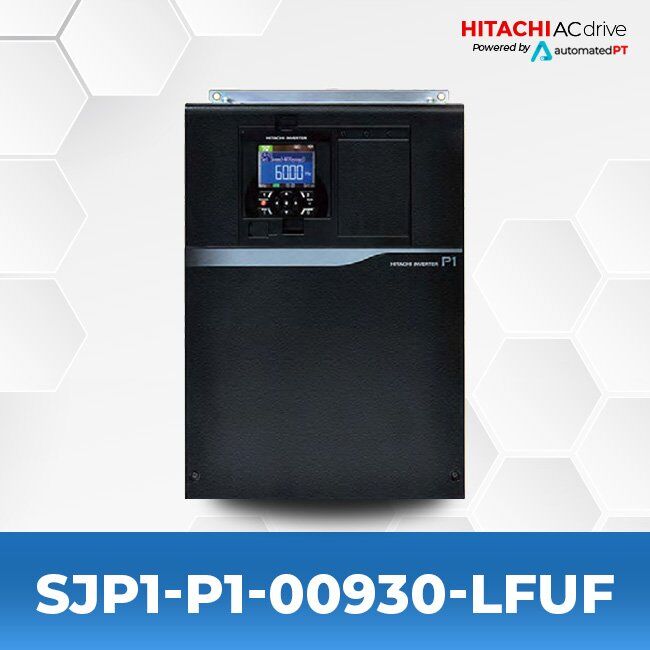

Hitachi SJP1 – P1-00930-LFUF
$1,882.83
39 in stock
- Series: SJP1
- 25 Horsepower(HP)
- 18.5 Kilowatt (KW)
- 200-240 Volts
- 76 Amps
- 3 Phase
- 35.2 pounds
SPECIFICATIONS
| Model Name | P1-00930-LFUF |
| Series | SJ-P1 Series |
| Voltage Class | 200-240 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 22 kW (30 HP) / 22 kW (30 HP) / 18.5 kW (25 HP) |
| Rated Output Current (VLD / LD / ND) | 93.0 A / 85.0 A / 76.0 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s |
| Main Power Supply | 3-Phase 200-240 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 200-240 V AC |
| Allowed Voltage Range | 170-264 V AC |
| Frequency Fluctuation | +/- 5 percent |
| Required Power Supply Capacity (VLD / LD / ND) | 42.2 kVA / 38.6 kVA / 34.5 kVA |

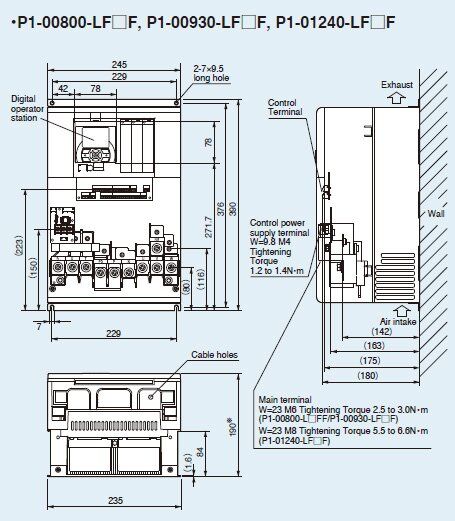

| Dimensions (W x H x D) | 9.65 x 15.35 x 7.48 in |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
This higher capacity SJ-P1 inverter is designed for larger industrial drives, providing reliable torque, comprehensive diagnostics, and communication flexibility for demanding plant applications.
Features
- Supports higher power motors with triple rating
- High overload capability and robust mechanical design
- Advanced monitoring and alarm functions
- Ideal for process, plant, and infrastructure applications
