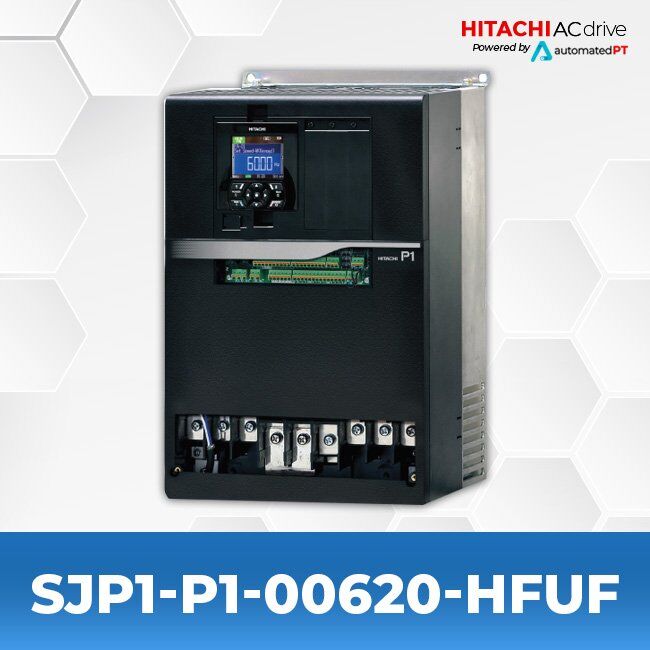

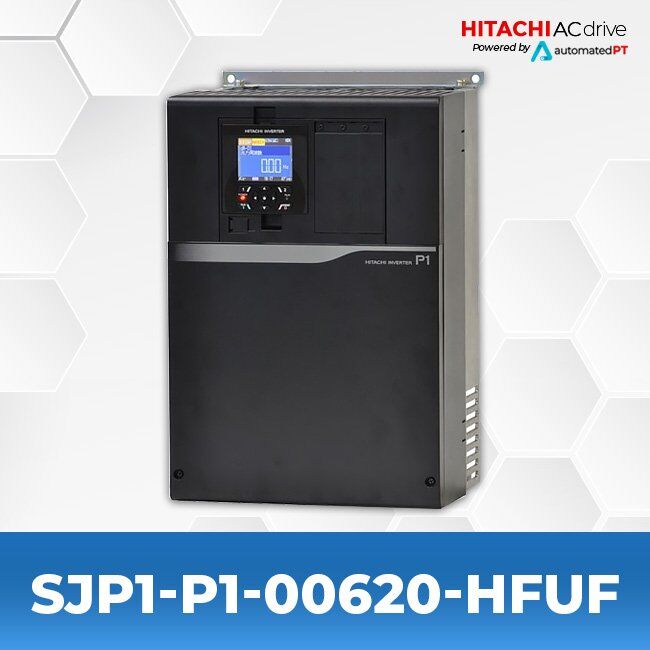

Hitachi SJP1 – P1-00620-HFUF
$1,688.40
99 in stock
- Series: SJP1
- 30 Horsepower(HP)
- 22 Kilowatt (KW)
- 380-480 Volts
- 48 Amps
- 3 Phase
- 35.2 pounds
SPECIFICATIONS
| Model Name | P1-00620-HFUF |
| Series | SJ-P1 Series |
| Voltage Class | 380-480 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 30 kW (40 HP) / 30 kW (40 HP) / 22 kW (30 HP) |
| Rated Output Current (VLD / LD / ND) | 62.0 A / 57.0 A / 48.0 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s |
| Main Power Supply | 3-Phase 380-500 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 380-500 V AC |
| Allowed Voltage Range | 323-550 V AC |
| Frequency Fluctuation | +/- 5 percent |
| Required Power Supply Capacity (VLD / LD / ND) | 56.3 kVA / 51.7 kVA / 43.5 kVA |

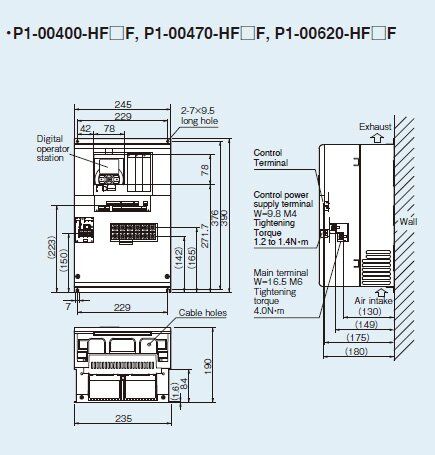

| Dimensions (W x H x D) | 9.6 x 15.35 x 9in |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
This SJ-P1 400 V inverter rating supports 30 HP normal duty motors, making it suitable for more demanding plant and infrastructure applications.
Features
-
- High power 400 V three phase input
- Triple duty ratings for flexible drive selection
- Built in PID, logic, and timers
- Energy saving functions and RS-485 communication
