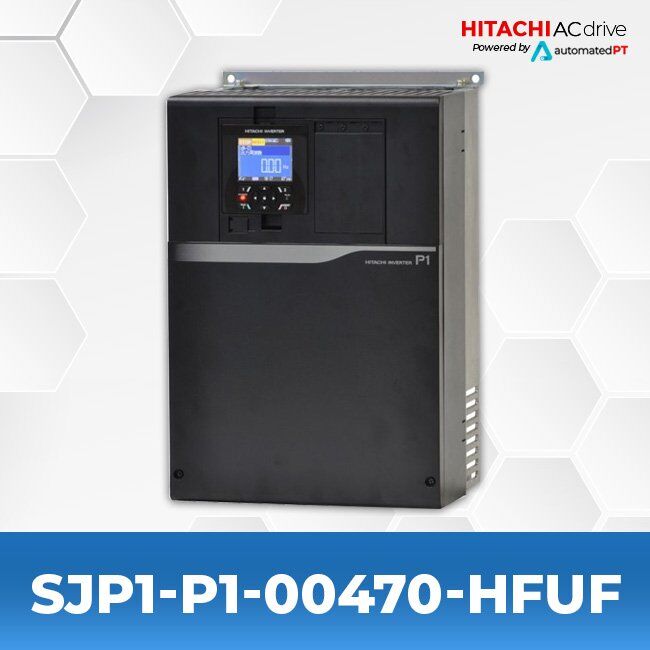

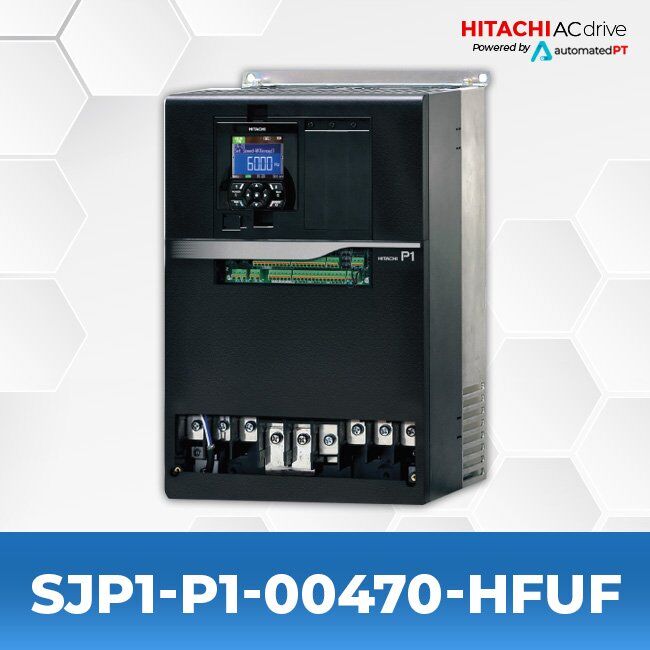

Hitachi SJP1 – P1-00470-HFUF

$1,621.20

99 in stock

Series: SJP1
25 Horsepower(HP)
18.5 Kilowatt (KW)
380-480 Volts
38 Amps
3 Phase
35.2 pounds

Description
Video

3 phase, 25 HP, 38 / 43 / 47 Amps FREE SHIPPING on the SJP1 Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

Easy operation and setup via LCD color keypad (shown)
Powerful high-torque performance – 200% @ 3 Hz
Internal DB transistor up to 22 kW (30 hp)
EzSQ Internal PLC-like controller
Position control function offers servo-like performance
Pump specific PID with sleep mode and line fill features
NEMA1conduit boxes available in early 2018
EMI filter integrated, Category C3

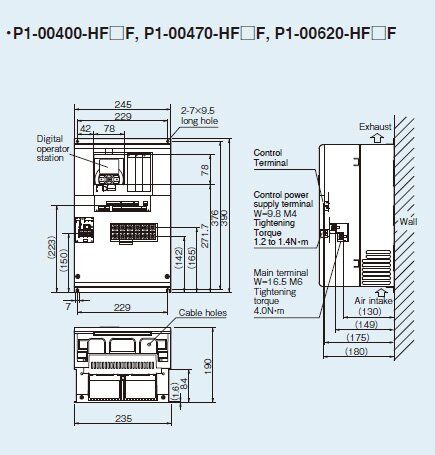

Height: 15.35 Inches
Width: 9.65 Inches
Depth: 7.48 Inches
Weight: 35 Lb

Very Light Duty Attributes

22 Kilowatt (KW)
30 Horsepower (HP)
47 Amps(A)

Light Duty Attributes

22 Kilowatt (KW)
30 Horsepower (HP)
43 Amps(A)

Manuals and Specifications:

Users Guide	Hitachi SJP1 Users Guide
Quick Start Guide	Hitachi SJP1 Quick Start Guide
Catalog	Hitachi SJP1 Catalog
Brochure	Hitachi SJP1 Brochure
Basic Guide	Hitachi SJP1 Basic Guide
