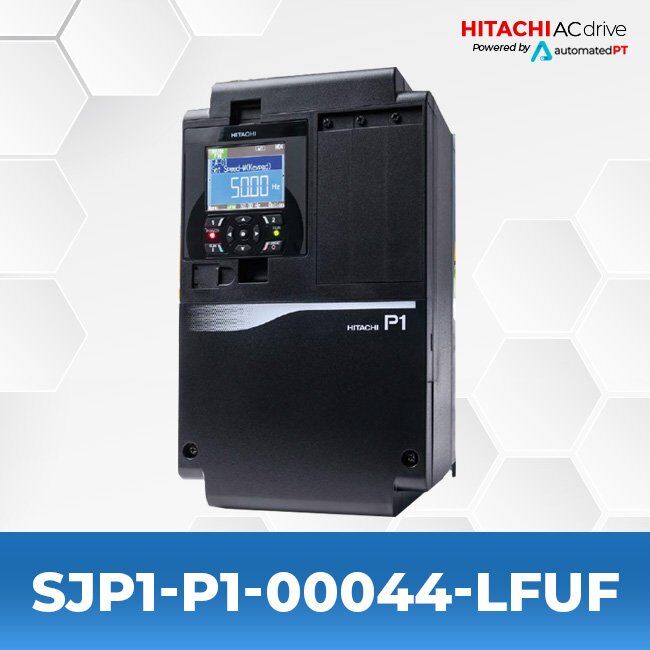

Hitachi SJP1 – P1-00044-LFUF
$545.30
19 in stock
- Series: SJ-P1 High-Performance Inverter
- 200 V Class – 0.4 to 0.75 kW Motor Capacity
- Rated Output Current: 3.2–4.4 A
- Supports induction (IM) and permanent-magnet (PM) motors
SPECIFICATIONS
| Model Name | P1-00044-LFUF |
| Series | SJ-P1 Series |
| Voltage Class | 200-240 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 0.75 kW (1 HP) / 0.75 kW (1 HP) / 0.4 kW (0.5 HP) |
| Rated Output Current (VLD / LD / ND) | 4.4 A / 3.7 A / 3.2 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s |
| Main Power Supply | 3-Phase 200-240 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 200-240 V AC |
| Allowed Voltage Range | 170-264 V AC |
| Frequency Fluctuation | +/- 5 percent |
| Required Power Supply Capacity (VLD / LD / ND) | 2.0 kVA / 1.7 kVA / 1.5 kVA |

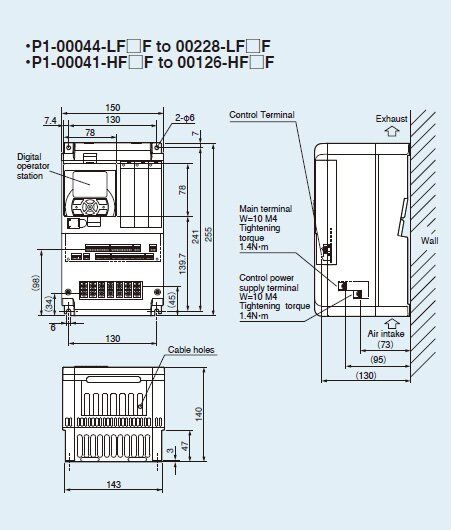

| Dimensions (W x H x D) | 5.91 x 10.04 x 5.51 in |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
The Hitachi SJ-P1 Series is a high performance industrial inverter designed for precise and efficient control of induction and permanent magnet motors. It combines energy saving functions, advanced protection, and an intuitive color LCD operator for a wide range of light and normal duty applications.
Features
- Heat sink design supports optional external mounting
- RS-485 Modbus RTU communication as standard
- Built in energy saving operation and PID control
- Keypad and terminal switching and three wire operation
- Standard color LCD operator with text based alarms
- Built in logic, arithmetic, and time delay functions
- Analog input disconnection detection and loss of signal protection
- Approvals include CE, UL, cUL, and RCM
- Long life design targeting 10 year MTBF
- Sink or source compatible digital inputs
- EzCOM drive to drive communication
- PID sleep mode and loss of pressure functions
- 200 V class power range: 0.4 to 75 kW
- 400 V class power range: 0.7 to 160 kW
