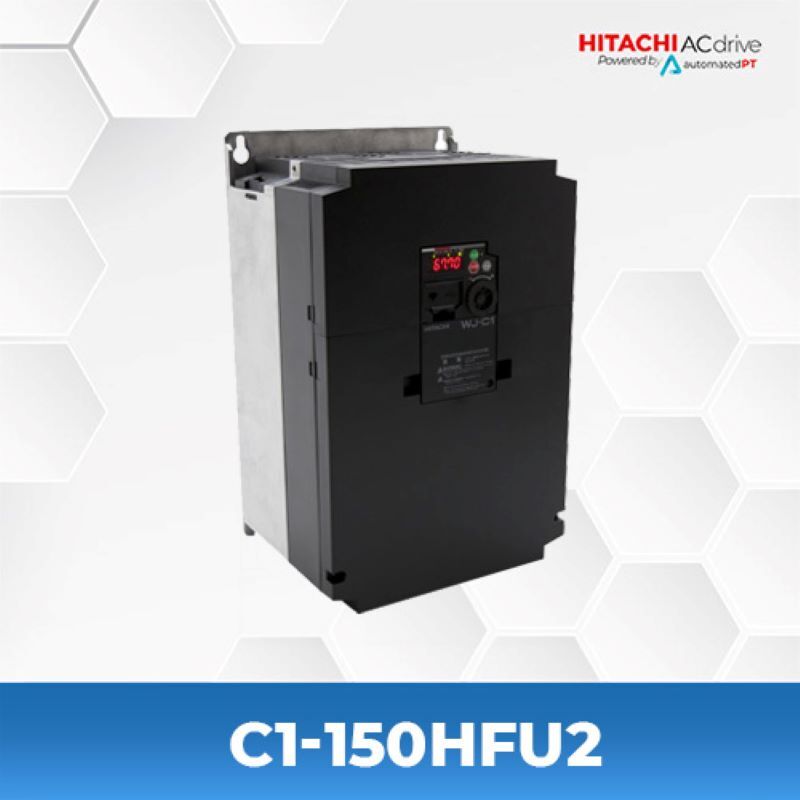

Hitachi C1-150HFU2 Inverter

SERIES DESCRIPTION

The WJ-C1 Series ranges from 100-400VAC and single phase input to three phase output. The WJ-C1 Series comes with an integrated auto-tuning function for easy sensorless vector control that realizes high starting torque of 200% or greater, suitable for a variety of applications.

The WJ-C1 Series is fully backward compatible from a functionality, size, and mounting perspective with the WJ-200 series of Hitachi drives.

Features

• Fully compatible with while adding enhanced functionality compared to WJ-200 series drives
• High starting torque and dramatically improved speed stability with advanced sensorless vector control
• New and more effective trip avoidance functions, safe-stop function
• Simplified auto-tuning procedure (SLV)
• Can be used for heavy and normal duty.
• Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
• Password function to prevent parameters or to hide some of all parameters
• Data comparison function: Display parameters changed from default setting
• Capable of driving permanent magnet (PMAC) as well as standard induction motors
• Dynamic braking transistor in all models
• Built in Easy Sequence (EzSQ) PLC-like functionality
• Simple position control capability
