The SJ200 is a true muscle-man, featuring enhanced ISPM-technology with vector control. Outstanding performance and design characteristics, such as superior torque for demanding applications and exceptionally compact size, for SJ200 inverter in a class of their own. They are suited for various applications in textile, paper and printing industries as well as for all areas of the metalworking industry, cranes and elevators.
- New Intelligent Sensorless Vector Control – NO Autotuning Required!
- Up to 200% Starting Torque
- Compact Industrial SJ200 Series Inverters and AC Variable Speed Drives
- Advanced Logic and Calculate functions
- Removable terminal strips for easy wiring
- Dynamic Braking transistor built in
- Advanced trip avoidance functions
- Removable Keypad
- NEMA4X Remote Keypad option
- Ratings ¼ to 10hp, 230V, single and 3 phase, ½ to 10hp, 460V, 3 phase

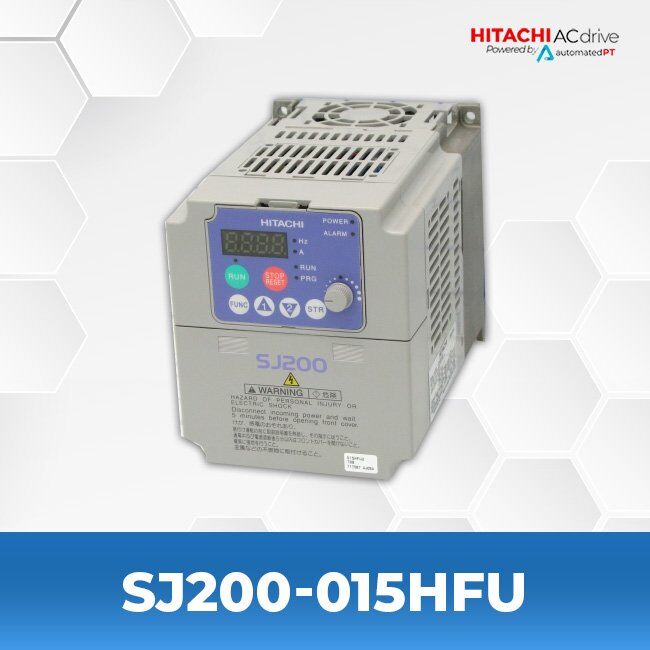

Hitachi’s SJ200 series AC drives are compact, high-torque, full-featured drives, yet are easy-to-use. Hitachi’s new technology inverter family is suitable for a wide range of drive applications. The SJ200 features high starting torque of 200% or greater at 1Hz. Drive Details Manufacturer Hitachi Series SJ200 Model SJ200-015HFU Constant/Variable Torque CT Horse Power 2 HP Maximum Amps 3.8 A Input 3-Phase 380-480V at 50/60 Hz Output 3-Phase 380-480V at 50/60 Hz Enclosure IP20 Dimensions Height: 6.1 in Width: 4.33 in Depth: 6.54 in
Manuals and Specifications:
Quick Reference Guide | Hitachi SJ200 Quick Reference Guide |
Hitachi SJ200 L200 Service Manual | Hitachi SJ200 Service Manual |
Instruction Manual | Hitachi SJ200 Instruction Manual |
Brochure | Hitachi SJ200 Brochure |
2 Quick Reference Guide | Hitachi SJ200 2 Quick Reference Guide |
2 Instruction Manual | Hitachi SJ200 2 Instruction Manual |
