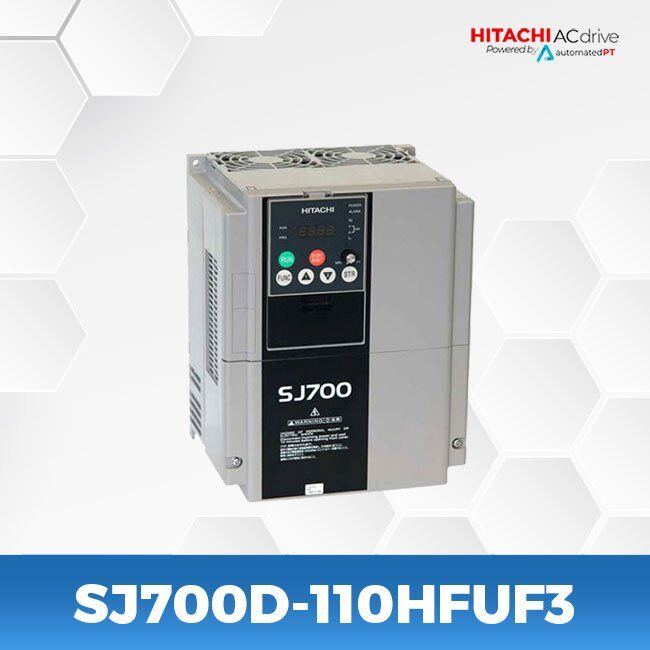

Hitachi SJ700D-110HFUF3 AC Drive

Series: SJ700D
15 Horsepower(HP)
11 Kilowatt (KW)
380-480 Volts
25 Amps
3 Phase
13.2 pounds

This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-00310-HFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Description
Video

FREE SHIPPING on the SJ700D Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

SJ700D Series
Input voltage: 380-480 volt, 3 phase, 15 HP

MODEL NO. SJ700D-110HFUF3

Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext software
Powerful high-torque performance – 200% @ 3 Hz
Internal DB transistor up to 22 kW (30 hp)
EzSQ Internal PLC-like controller
Position control function offers servo-like performance
Long-life, easy-to-maintain design
NEMA1-style conduit box optional

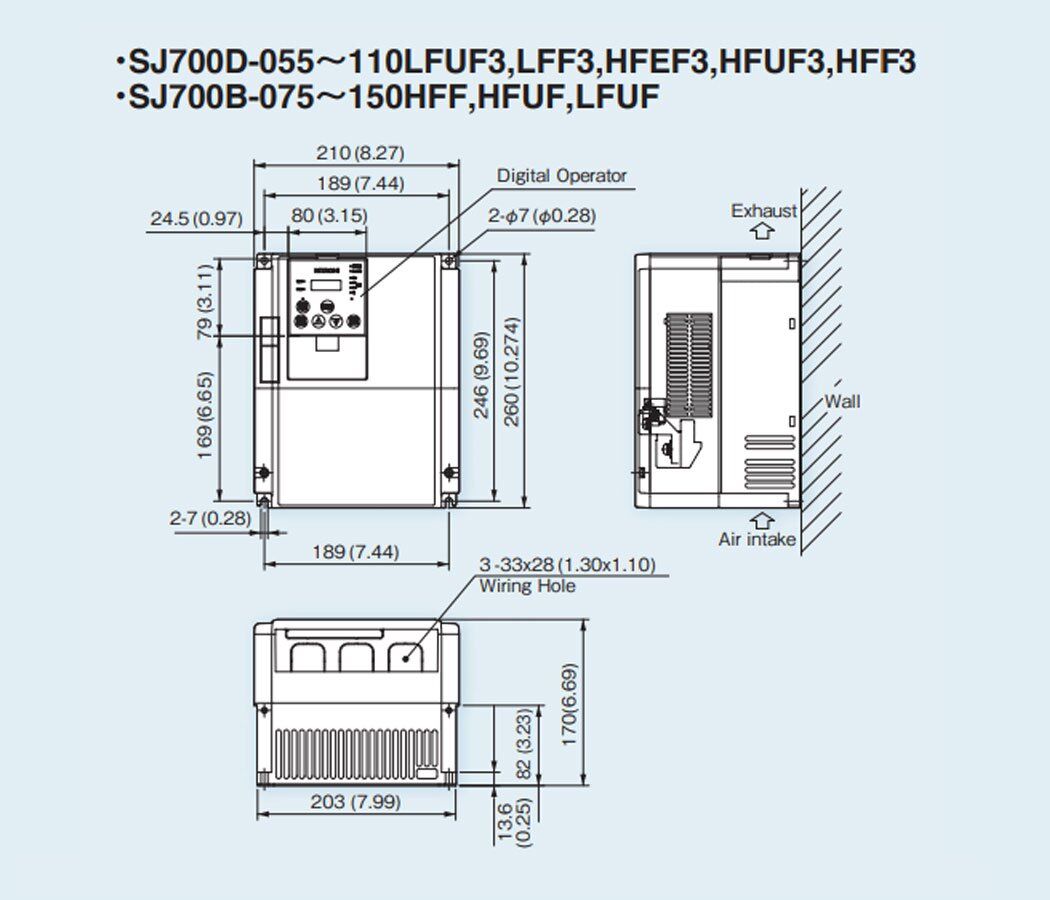

Height: 10.27 Inches
Width: 8.27 Inches
Depth: 6.69 Inches
Weight: 20 Lb

Light Duty (Variable Torque) Attributes

15 Kilowatt (KW)
20 Horsepower (HP)
29Amps(A)

Manuals and Specifications:

Brochure	Hitachi SJ700D Brochure
Quick Reference Guide	Hitachi SJ700D Quick Reference Guide
Instruction Manual	Hitachi SJ700D Instruction Manual
