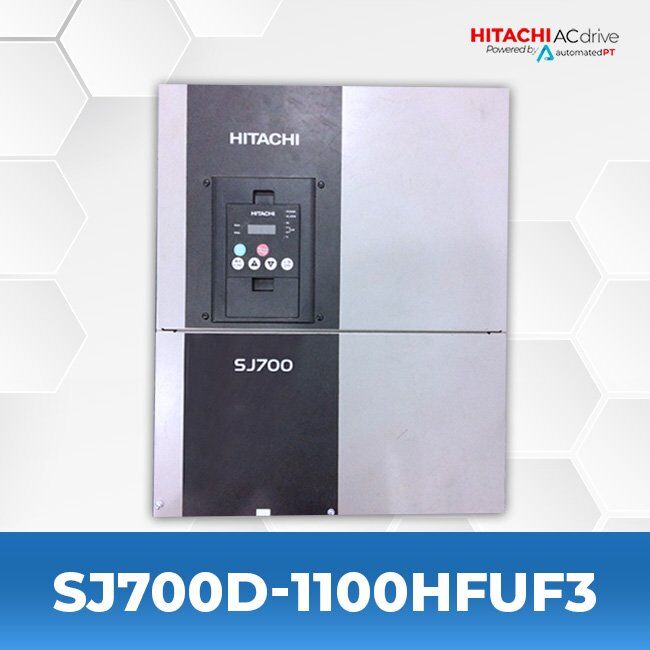

Hitachi SJ700D-1100HFUF3 AC Drive

  • Series: SJ700D
  • 150 Horsepower(HP)
  • 110 Kilowatt (KW)
  • 380-480 Volts
  • 217 Amps
  • 3 Phase
  • 154 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-02520-HFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


FREE SHIPPING on the SJ700D Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

SJ700D Series
Inverter, 380-480 volt, 3 phase, 150 HP

MODEL NO. SJ700D-1100HFUF3

Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext software
Powerful high-torque performance – 200% @ 3 Hz
Internal DB transistor up to 22 kW (30 hp)
EzSQ Internal PLC-like controller
Position control function offers servo-like performance
Long-life, easy-to-maintain design
NEMA1-style conduit box optional

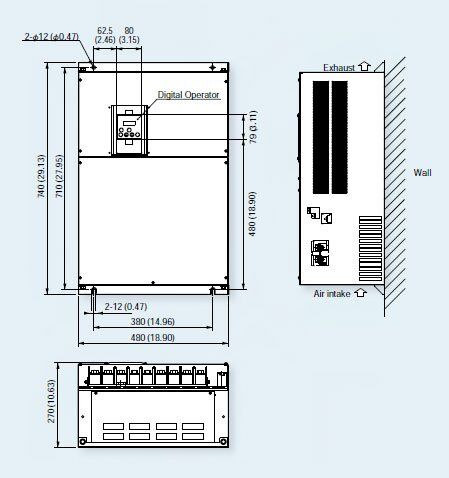

Height: 29.13 Inches
Width: 18.90 Inches
Depth: 10.63 Inches
Weight: 220 Lb

Light Duty (Variable Torque) Attributes

  • 132 Kilowatt (KW)
  • 175 Horsepower (HP)
  • 230Amps(A)
