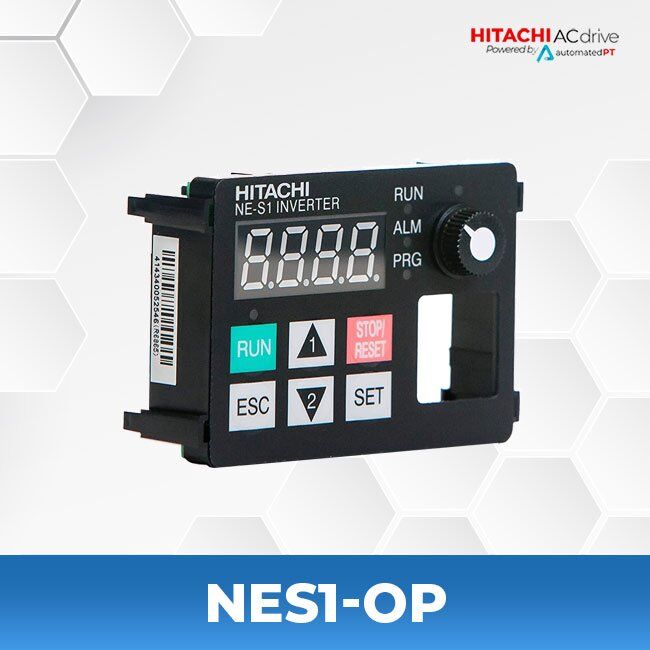

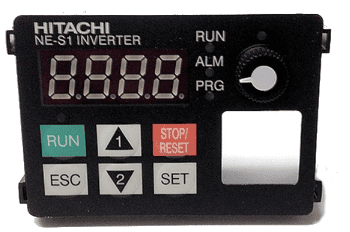

Hitachi NES1-OP

$29.00

99 in stock

  • Accessory: Digital Operator / Keypad
  • Compatible with NES1 Series Inverters
  • Includes integrated RUN/STOP/RESET buttons
  • Provides LED display and local control functions

SPECIFICATIONS

Model Name NES1-OP
Type Digital Operator / Keypad
Compatible Models NES1 Series Inverters
Display 7-Segment LED Display
Operation Keys RUN / STOP / RESET (Unified Key)
Frequency Adjustment Built-in Potentiometer (VR)
Communication Port RJ45 Connector (RS485 / RS422)
LED Indicators Power (Red), Run (Yellow-Green), Trip (Red)
Mounting Style Front-Mounted on NES1 Drive
Weight Approx. 0.1 kg (0.22 lb)

Manuals and Specifications

Brochure Hitachi NES1 Series Brochure

SERIES DESCRIPTION

The Hitachi NES1-OP Digital Operator provides simple, intuitive local control for the NES1 Series Inverters. Designed for compactness and usability, it integrates essential control and monitoring functions into a single, plug-in module. The NES1-OP enables direct access to inverter parameters, start/stop control, and frequency adjustment without the need for external communication equipment.

Features

  • Compact, front-mounted design for convenient operation
  • One-button control for RUN, STOP, and RESET
  • 7-segment LED display for frequency, current, and status monitoring
  • Built-in potentiometer for analog frequency adjustment
  • RJ45 communication interface (RS485 / RS422) for remote operator connection
