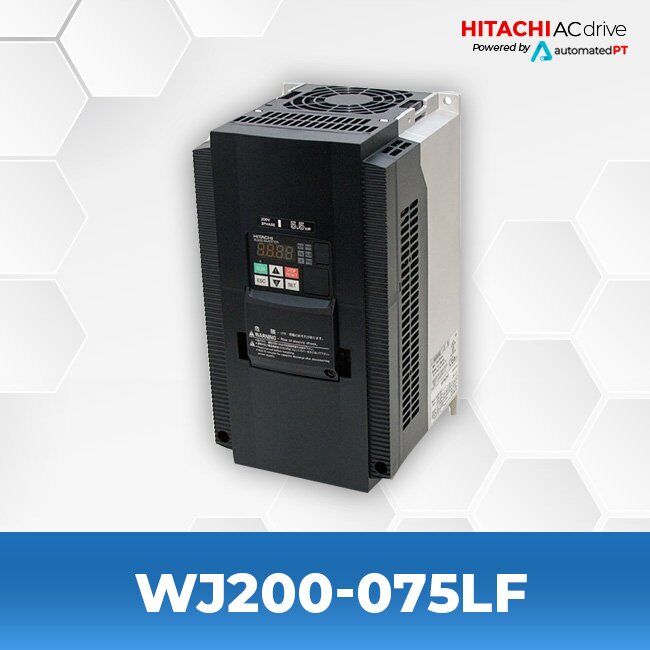

Hitachi WJ200 Series WJ200-075LF

$833.00

14 in stock

  • Series: WJ200
  • 10 Horsepower(HP)
  • 7.5 Kilowatt (KW)
  • 200 Volts
  • 33 Amps
  • 3 Phase
  • 7.3 pounds

Inverter, 200 volt, 3 phase, 10 CT (15 VT) HP, 33.0 CT (40.0 VT) Amps
Input voltage: 200 volt, 3 phase 10 CT (15 VT) HP

Hitachi WJ200 Series WJ200-075LF

FREE SHIPPING on the WJ200 Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

MODEL NO. WJ200-075LF

Features:

  • High starting torque and dramatically improved speed stability thanks to advanced sensorless vector control
  • Simplified autotuning procedure
  • Easy setup and operation via standard integral keypad, optional enhanced keypad or via PC software
  • Dynamic braking transistor in all models
  • EasySequence (EzSQ) PLC-like functionality built in
  • Simple position control capability
  • Capable of driving permanent magnet as well as standard induction motors
  • Dual rated for CT/VT applications
  • New and more effective trip avoidance functions, safe-stop function and much more…

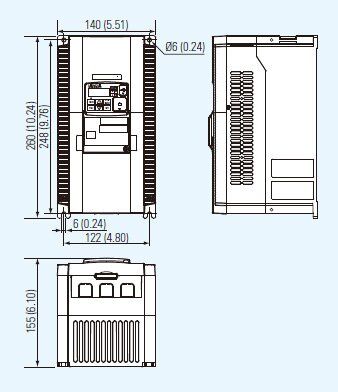

  • Height: 10.24 Inches
  • Width: 5.51 Inches
  • Depth: 6.10 Inches
  • Weight: 15 Lb

Light Duty (Variable Torque) Attributes

  • 11 Kilowatt (KW)
  • 15 Horsepower (HP)
  • 40Amps(A)

Manuals and Specifications:

Order your Hitachi WJ200, hitachi ac drive sales, hitachi ac drives, hitachi drives, hitachi, hitachi vfd’s today.


Video

How to set up Hitachi Inverters


Hitachi Inverters -PID Control


Hitachi Inveter -How to Enable Dynamic Braking


Accessories

$42.00

  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • OPE-Srmini NEMA4X Option Kit

$10.00

  • Compatible with NES1,SJ700D,WJ200,X200
  • 0Drive Option(HP)
  • Extension Cable 1m(KW)

Out of stock
$15.00

  • Compatible with NES1,SJ700D,WJ200,X200
  • Drive Option
  • Extension Cable 3m(KW)

$92.00

  • Digital Operator (supplied as standard operator on SJ200)
  • Requires ICS-1 or ICS-3 cable for remote mounting to be compatible with the L100M, X200, L200, SJ200, SJ700, SJ300 and L300P drives

$110.00

  • Compatible with WJ200
  • Drive Option
  • WJ200 Conduit Box (NEMA 1)

$72.00

  • Compatible with WJ200,X200
  • Drive Option
  • Input / Output RFI Filter
