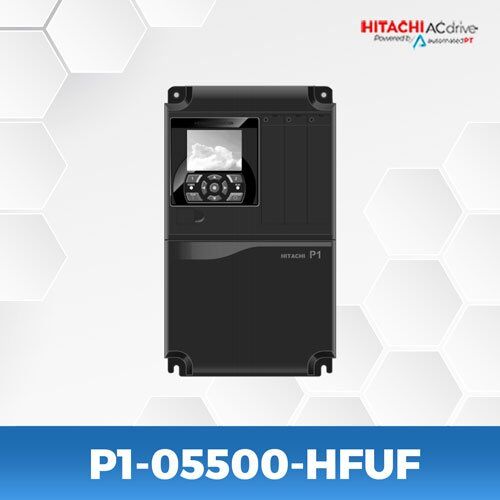

Hitachi SJP1 – P1-05500-HFUF

$18,806.90

5 in stock

  • Series: SJP1
  • 350 Horsepower(HP)
  • 250 Kilowatt (KW)
  • 380-480 Volts
  • 550 Amps
  • 3 Phase
  • 275.5 pounds

380-480 volt, 3 phase, 350/400 HP, 500 / 550 Amps

FREE SHIPPING on the SJP1 Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

  • Easy operation and setup via LCD color keypad (shown)
  • Powerful high-torque performance – 200% @ 3 Hz
  • Internal DB transistor up to 22 kW (30 hp)
  • EzSQ Internal PLC-like controller
  • Position control function offers servo-like performance
  • Pump specific PID with sleep mode and line fill features
  • NEMA1conduit boxes available in early 2018
  • EMI filter integrated, Category C3
  • Height: 39.17 Inches
  • Width: 26.77 Inches
  • Depth: 14.56 Inches
  • Weight: 275.5 Lb

Light Duty Attributes

  • 280 Kilowatt (KW)
  • 400 Horsepower (HP)
  • 500 Amps(A)

Manuals and Specifications:

Users Guide Hitachi SJP1 Users Guide
Basic Guide Hitachi SJP1 Basic Guide

Accessories

Hitachi P1-ECT

$371.00

  • Compatible with SJP1
  • Drive Options
  • EtherCAT option slot in cassette board
  • 2 lbs

Add to cart

Hitachi P1-EN

$371.00

  • Compatible with SJP1
  • Drive Options
  • Ethernet Communication Interface Modbus/TCP Protocol
  • 2 lbs

Add to cart

Hitachi P1-PB

$371.00

  • Compatible with SJP1
  • Drive Options
  • Profibus-DP option slot in cassette board
  • 2 lbs

Add to cart

Hitachi USB2-6MICRO

$11.00

  • Compatible with SJP1
  • Drive Options
  • USB to micro USB cable 6' (2M)
  • 2 lbs

Add to cart

Hitachi VOP

$166.60

  • Compatible with SJP1
  • Drive Options
  • LCD color display and operator, standard with SJ-P1
  • 2 lbs

Add to cart
