Hitachi SJP1-P1-02290-LFUF
$4,396.70
19 in stock
- Series: SJP1
- 60 Horsepower(HP)
- 45 Kilowatt (KW)
- 200-240 Volts
- 182 Amps
- 3 Phase
- 66 pounds
SPECIFICATIONS
| Model Name | P1-02290-LFUF |
| Series | SJ-P1 Series |
| Voltage Class | 200-240 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 55 kW / 55 kW / 45 kW |
| Rated Output Current (VLD / LD / ND) | 229 A / 210 A / 182 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110% 60 s, 120% 3 s LD: 120% 60 s, 150% 3 s ND: 150% 60 s, 200% 3 s |
| Main Power Supply | 3-Phase 200-240 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 200-240 V AC |
| Allowed Voltage Range | 170-264 V AC |
| Frequency Fluctuation | ±5% |
| Required Power Supply Capacity (VLD / LD / ND) | 79.3 kVA / 72.7 kVA / 63.0 kVA |

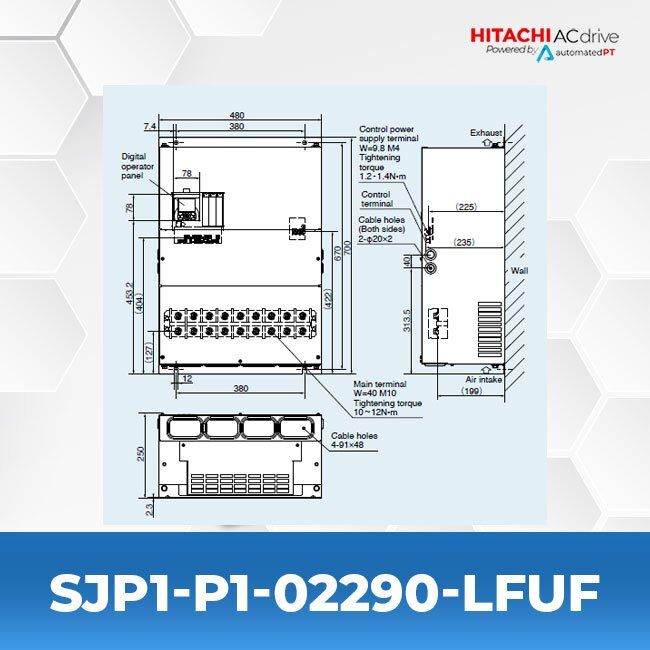

| Dimensions (W x H x D) | 12.99 x 22.44 x 11.02 in |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
The Hitachi SJ-P1 Series is a high-performance industrial inverter designed for modern automation demands, offering precise motor control, robust protection features, and long-term reliability. It supports both induction (IM) and permanent-magnet (PM) motors, making it suitable for advanced industrial systems.
Features
- External-mount capable heat sink structure
- Built-in RS-485 Modbus RTU communication
- Energy-saving mode with enhanced PID capability
- Selectable keypad or terminal-based operation
- Full-color LCD operator with clear text alarms
- Integrated logic, arithmetic, and delay functions
- Analog input disconnection detection
- Certifications: CE, UL, cUL, RCM
- Long-life design targeting 10-year service life
- EzCOM communication for drive-to-drive networks
- PID sleep mode and loss-of-pressure protection
- Supports both IM and PM motor types
- 200V class: 0.4 to 75 kW
- 400V class: 0.7 to 160 kW
