Hitachi SJP1 – P1-01760-HFUF

$5,639.20

Out of stock, Ships on 09/04/2024

  • Series: SJP1
  • 100 Horsepower(HP)
  • 75 Kilowatt (KW)
  • 380-480 Volts
  • 149 Amps
  • 3 Phase
  • 121 pounds

3 phase, 100 HP, 149 / 160 / 176 Amps FREE SHIPPING on the SJP1 Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

  • Easy operation and setup via LCD color keypad (shown)
  • Powerful high-torque performance – 200% @ 3 Hz
  • Internal DB transistor up to 22 kW (30 hp)
  • EzSQ Internal PLC-like controller
  • Position control function offers servo-like performance
  • Pump specific PID with sleep mode and line fill features
  • NEMA1conduit boxes available in early 2018
  • EMI filter integrated, Category C3

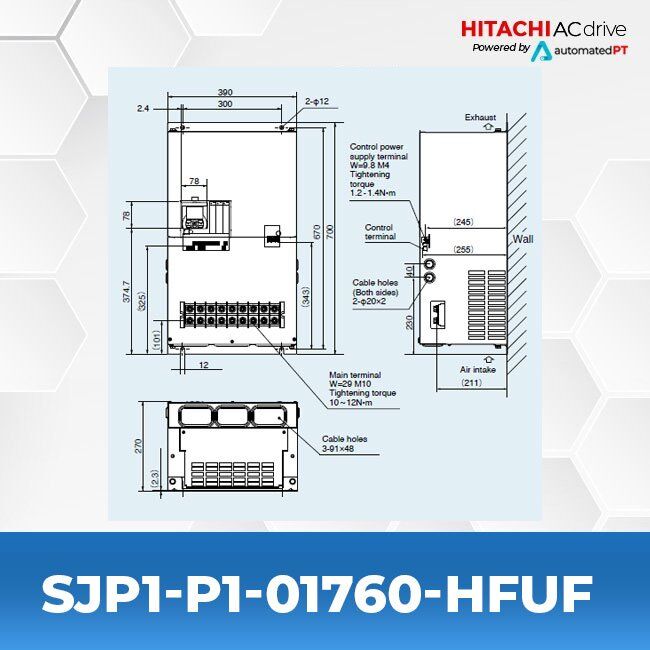

  • Height: 27.56 Inches
  • Width: 15.35 Inches
  • Depth: 10.63 Inches
  • Weight: 121 Lb
Very Light Duty Attributes
  • 90 Kilowatt (KW)
  • 120 Horsepower (HP)
  • 176 Amps(A)
Light Duty Attributes
  • 90 Kilowatt (KW)
  • 120 Horsepower (HP)
  • 160 Amps(A)
Manuals and Specifications:

Video

Introduction – SJ-P1 Series Drives


How to set up Motor Data – Hitachi SJ-P1


How to set up Speed Reference – Hitachi SJ-P1


How to set up Run Command – Hitachi SJ-P1


How to set up Hitachi Inverters


Hitachi Inveter – How to Enable Dynamic Braking


Hitachi Inverters – PID Control


Accessories

$735.00

  • Compatible with SJP1
  • Drive Options
  • SJ-P1 Series (NEMA 1)
  • NEMA 1 Conduit Box
  • 2 lbs

$371.00

  • Compatible with SJP1
  • Drive Options
  • EtherCAT option slot in cassette board
  • 2 lbs

$371.00

  • Compatible with SJP1
  • Drive Options
  • Ethernet Communication Interface Modbus/TCP Protocol
  • 2 lbs

$157.50

  • Compatible with SJP1
  • Drive Options
  • Encoder Feedback Option (5 V differential line driver input)
  • 2 lbs

$371.00

  • Compatible with SJP1
  • Drive Options
  • Profibus-DP option slot in cassette board
  • 2 lbs

$11.00

  • Compatible with SJP1
  • Drive Options
  • USB to micro USB cable 6' (2M)
  • 2 lbs

$166.60

  • Compatible with SJP1
  • Drive Options
  • LCD color display and operator, standard with SJ-P1
  • 2 lbs
