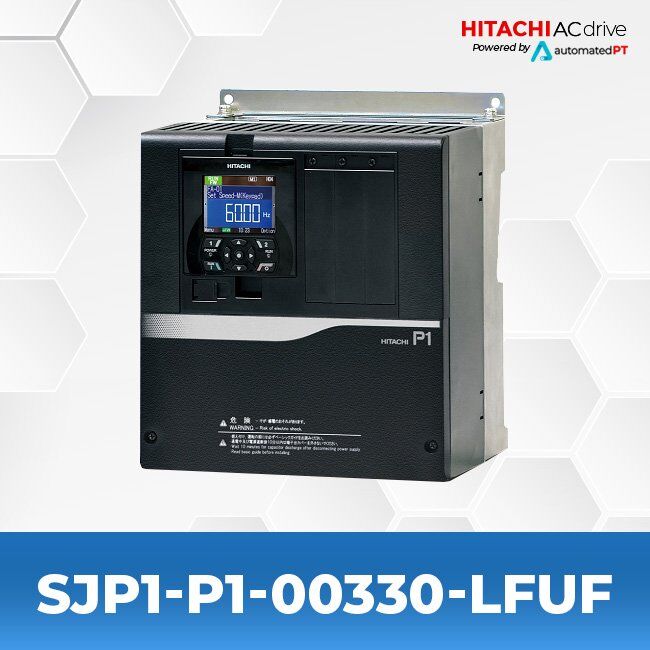

Hitachi SJP1 – P1-00330-LFUF
$790.30
29 in stock
- Series: SJP1
- 7.5 Horsepower(HP)
- 5.5 Kilowatt (KW)
- 200-240 Volts
- 24 Amps
- 3 Phase
- 15.4 pounds
SPECIFICATIONS
| Model Name | P1-00330-LFUF |
| Series | SJ-P1 Series |
| Voltage Class | 200-240 V AC (3-Phase) |
| Applicable Motor Capacity (VLD / LD / ND) | 7.5 kW (10 HP) / 7.5 kW (10 HP) / 5.5 kW (7.5 HP) |
| Rated Output Current (VLD / LD / ND) | 33.0 A / 30.0 A / 25.0 A |
| Overload Capacity (VLD / LD / ND) | VLD: 110 percent 60 s, 120 percent 3 s / LD: 120 percent 60 s, 150 percent 3 s / ND: 150 percent 60 s, 200 percent 3 s |
| Main Power Supply | 3-Phase 200-240 V AC, 50/60 Hz |
| Control Power Supply | 1-Phase 200-240 V AC |
| Allowed Voltage Range | 170-264 V AC |
| Frequency Fluctuation | +/- 5 percent |
| Required Power Supply Capacity (VLD / LD / ND) | 15.0 kVA / 13.6 kVA / 11.3 kVA |

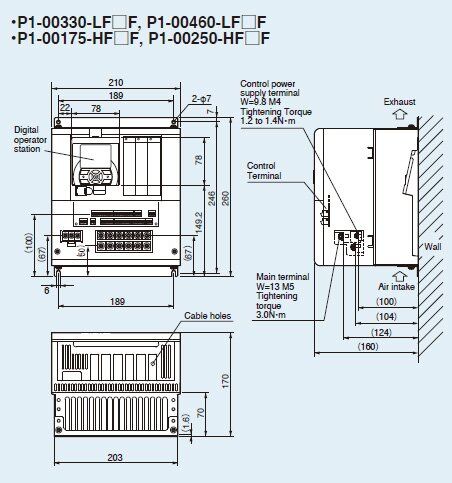

| Dimensions (W x H x D) | 8.27 x 10.24 x 6.69 in |
Manuals and Specifications
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
This SJ-P1 frame size is ideal for mid sized motors in fans, blowers, and pumps, offering strong overload performance and integrated industrial communications.
Features
- High efficiency motor control with triple rating
- Energy saving PID and sleep functions
- RS-485 Modbus RTU communication
- Rich monitoring via the color LCD operator
