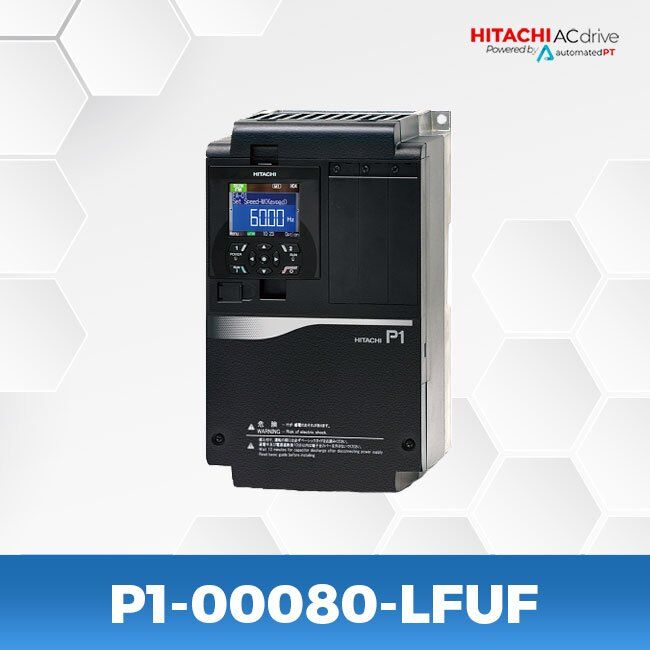

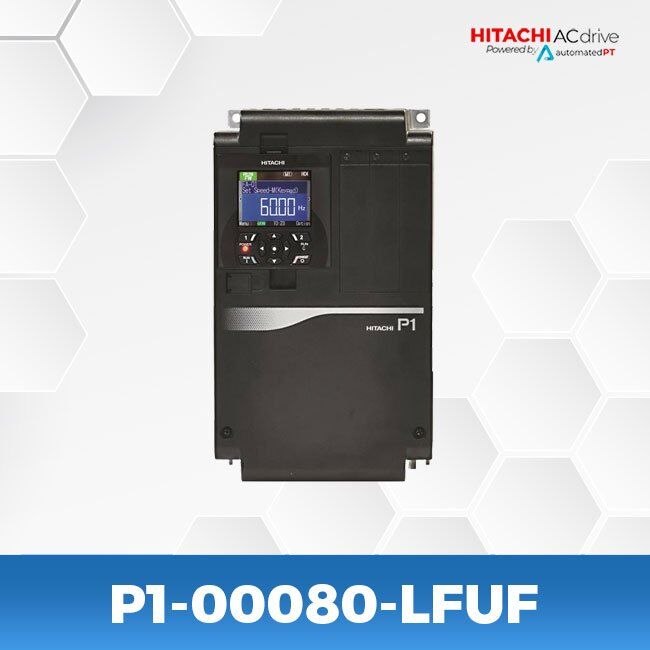

Hitachi SJP1 – P1-00080-LFUF
$567.70
8 in stock
- Series: SJP1
- 1 Horsepower(HP)
- 0.75 Kilowatt (KW)
- 200-240 Volts
- 5 Amps
- 3 Phase
- 8.8 pounds
SPECIFICATIONS
| Model Name | P1-00080-LFUF |
| Series | SJ-P1 Series |
| Horsepower (ND) | 1 HP |
| Kilowatts (ND) | 0.75 kW |
| Rated Current (ND) | 5.0 A |
| Voltage Class | 200–240V |
| Phase | 3 Phase |
MANUALS & DOCUMENTATION
| Users Guide | Hitachi SJP1 Users Guide |
| Quick Start Guide | Hitachi SJP1 Quick Start Guide |
| Catalog | Hitachi SJP1 Catalog |
| Brochure | Hitachi SJP1 Brochure |
| Basic Guide | Hitachi SJP1 Basic Guide |
SERIES DESCRIPTION
The Hitachi SJ-P1 Series is a high-performance industrial inverter family designed for demanding motor-control applications. Supporting both induction (IM) and permanent-magnet (PM) motors, the SJ-P1 offers efficient operation, advanced control, and a modern color LCD operator for intuitive setup and diagnostics.
Features
- High-performance vector control for IM and PM motors
- RS-485 Modbus RTU communication standard
- Energy-saving functions with optimized motor control
- Color LCD keypad with text-based alarms and messages
- Built-in logic, arithmetic, and time-delay functions
- Keypad/terminal switching and three-wire operation
- PID with sleep mode and loss-of-pressure protection
- Sink/source compatible digital inputs
- EzCOM for master-less drive-to-drive communication
- Compatible with both 200–240V and 380–480V systems
Got a Question? We're Here To Help
- For Manuals, Catalogs & Documentation: See Files Section
- Need More Help? Contact Us
Video
Introduction – SJ-P1 Series Drives
How to set up Motor Data – Hitachi SJ-P1
How to set up Speed Reference – Hitachi SJ-P1
How to set up Run Command – Hitachi SJ-P1
How to set up Hitachi Inverters
Hitachi Inveter – How to Enable Dynamic Braking
Hitachi Inverters – PID Control
Accessories
$273.00
- Compatible with SJP1
- Drive Options
- SJ-P1 Series (NEMA 1)
- NEMA 1 Conduit Box
- 2 lbs
$371.00
- Accessory: EtherCAT Communication Option Board
- Compatible with: Hitachi SJ-P1 Series Inverters
- Protocol: EtherCAT CiA402 Drive Profile
- Interface: Dual RJ-45 Ports (100BASE-TX)
$371.00
- Accessory: Ethernet Communication Option Board
- Compatible with: Hitachi SJ-P1 Series Inverters
- Protocol: Modbus TCP (IPv4 / IPv6)
- Interface: Dual RJ-45 Ports (10BASE-T / 100BASE-TX)
$157.50
- Accessory: Encoder Feedback Option Board
- Compatible with: Hitachi SJ-P1 Series Inverters
- Input Type: A/B/Z Incremental Encoder (Differential)
- Max Frequency: 200 kpps (Pulse Train Input)
$371.00
- Compatible with SJP1
- Drive Options
- Profibus-DP option slot in cassette board
- 2 lbs
$166.60
- Compatible with SJP1
- Drive Options
- LCD color display and operator, standard with SJ-P1
- 2 lbs
