SJ700D Series
Input voltage: 200-240 volt, 3 phase, 60 HP

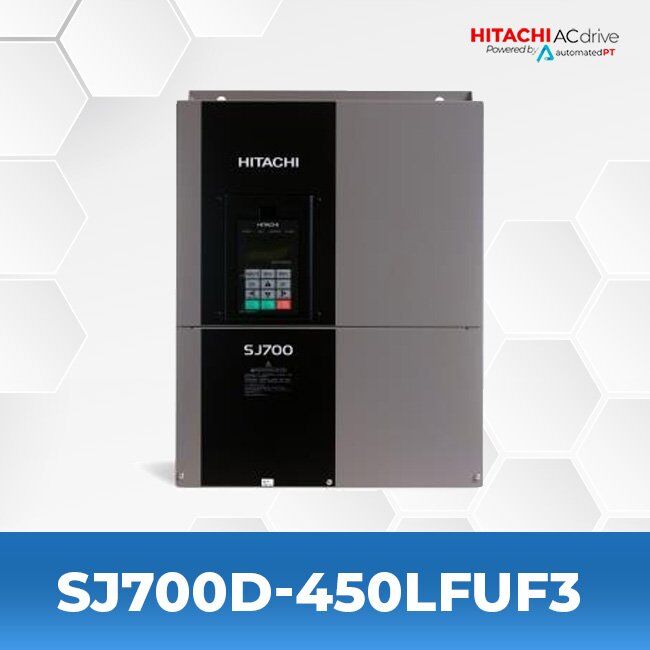

MODEL NO. SJ700D-450LFUF3
Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext software
Powerful high-torque performance – 200% @ 3 Hz
Internal DB transistor up to 22 kW (30 hp)
EzSQ Internal PLC-like controller
Position control function offers servo-like performance
Long-life, easy-to-maintain design
NEMA1-style conduit box optional

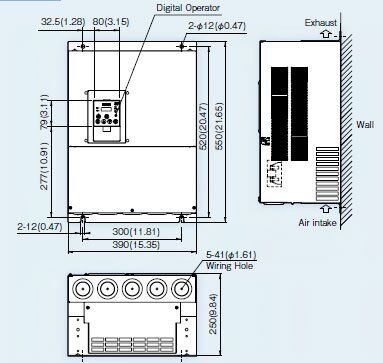

Height: 21.65 Inches
Width: 15.35 Inches
Depth: 9.84 Inches
Weight: 80 Lb
Light Duty (Variable Torque) Attributes
- 55 Kilowatt (KW)
- 75 Horsepower (HP)
- 210Amps(A)
Manuals and Specifications:
Brochure | Hitachi SJ700D Brochure |
Quick Reference Guide | Hitachi SJ700D Quick Reference Guide |
Instruction Manual | Hitachi SJ700D Instruction Manual |
