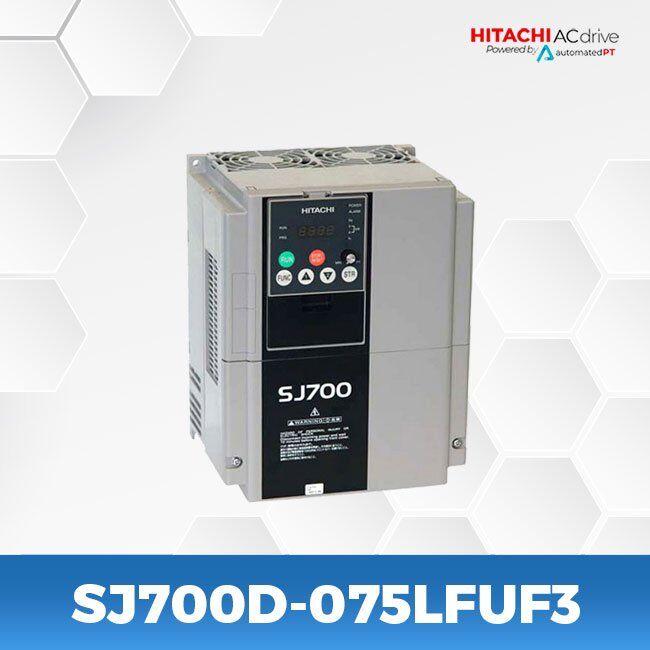

Hitachi SJ700D-075LFUF3 AC Drive

  • Series: SJ700D
  • 10 Horsepower(HP)
  • 7.5 Kilowatt (KW)
  • 200-240 Volts
  • 32 Amps
  • 3 Phase
  • 13.2 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-00460-LFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


FREE SHIPPING on the SJ700D Series Inverters (ground service using our choice of carrier, within the contiguous United States only)

SJ700D Series
Input voltage: 200-240 volt, 3 phase, 10 HP

MODEL NO. SJ700D-075LFUF3

Easy operation and setup by standard keypad (shown) or optional PC-based ProDriveNext software
Powerful high-torque performance – 200% @ 3 Hz
Internal DB transistor up to 22 kW (30 hp)
EzSQ Internal PLC-like controller
Position control function offers servo-like performance
Long-life, easy-to-maintain design
NEMA1-style conduit box optional

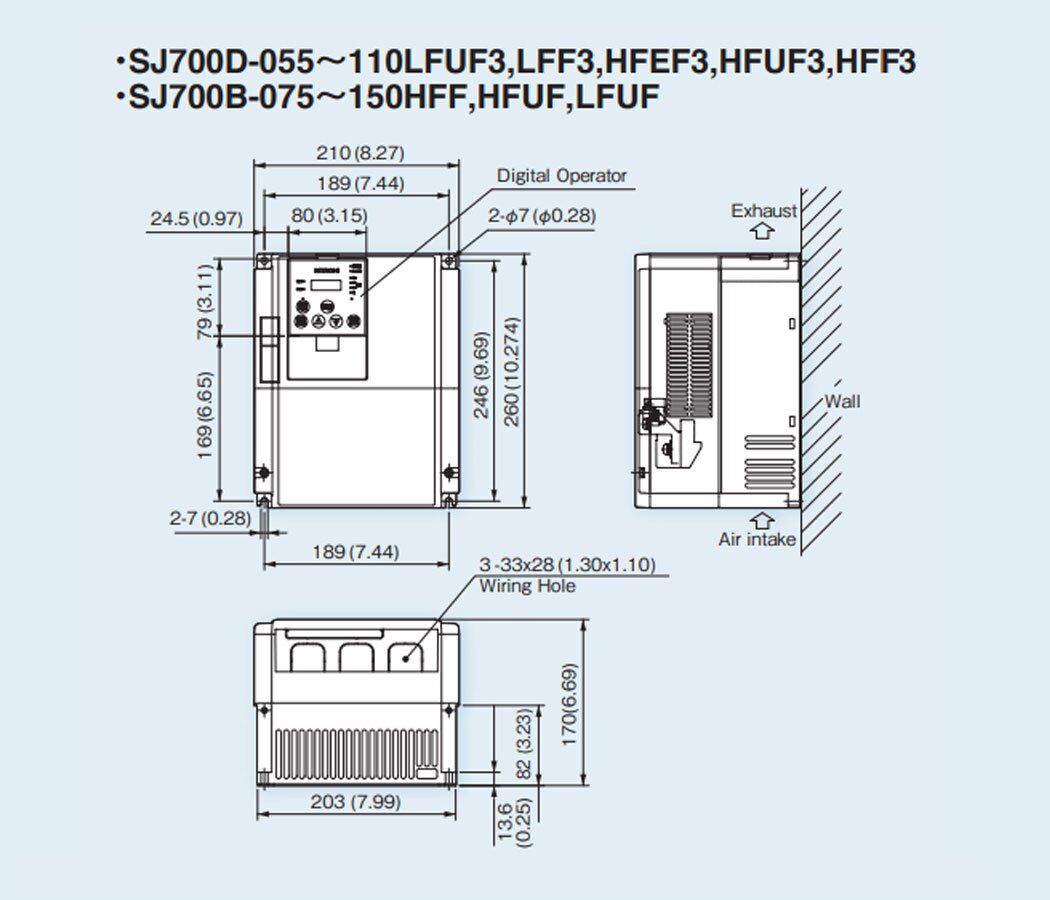

Height: 10.27 Inches
Width: 8.27 Inches
Depth: 6.69 Inches
Weight: 20 Lb

Light Duty (Variable Torque) Attributes

  • 11 Kilowatt (KW)
  • 15 Horsepower (HP)
  • 44Amps(A)

Manuals and Specifications:

Video

How to set up Hitachi Inverters


Hitachi Inverters -PID Control


Hitachi Inveter -How to Enable Dynamic Braking
