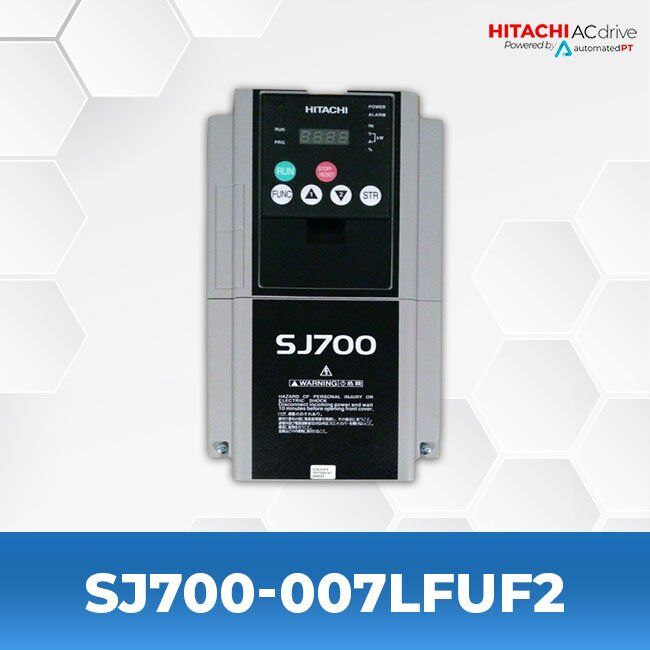

Hitachi Industrial SJ700 Series Inverters and AC Variable Speed Drives
Inverter, 200-240 volt, 3 phase, 1 HP, 0.75 Amps
Light Duty (Variable Torque) Attributes
- 1.1 Kilowatt (KW)
- 1.5 Horsepower (HP)
FREE SHIPPING on the SJ700 Series Inverters (ground service using our choice of carrier, within the contiguous United States only)
Hitachi SJ700 Series VFDs reasserts its technological leadership with an improved sensor-less vector (SLV) control algorithm that enables the SJ700 to develop more than 200% starting torque at 0.3 Hz. The SJ700 can develop 150% torque at 0 Hz, which is ideal for vertical lift applications, using Hitachi’s unique “0 Hz Domain” open-loop control mode.
Hitachi has also greatly simplified the auto-tuning process, making commissioning trouble-free. Enhancement in the SJ700 is Hitachi’s EzSQ (Easy Sequence) built in programming function. It is similar to having a PLC built into the inverter! In many cases, the need for a separate PLC can be eliminated. The program is developed on a PC and then downloaded to the inverter using the simple to use EzSQ software provided at no charge.
The SJ700 also incorporates true servo-like position control, offering a low-cost motion control solution. Mated with a general-purpose induction motor with an encoder, the SJ700 is given a position command, speed command, and acceleration/deceleration times. The shaft moves from position A to position B following the defined profile and then maintain the shaft in servo lock status.
- Easy operation and setup by removable keypad
- Open-loop or closed-loop (with optional SJ-FB)
- High starting torque – 200% at 0.3 Hz
- Advanced trip avoidance functions
- EzSQ – built-in PLC-like programming function
Manuals and Specifications:
