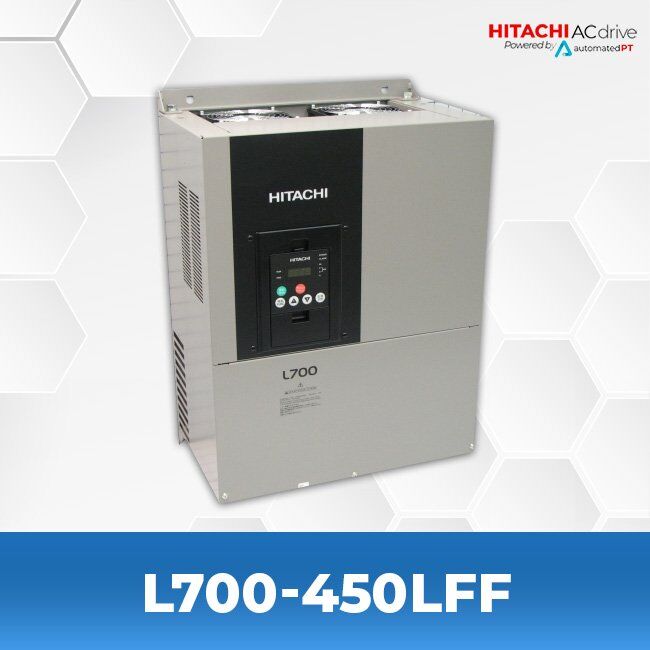

Hitachi L700 Series L700-450LFF

  • Series: L700
  • 60 Horsepower(HP)
  • 45 Kilowatt (KW)
  • 200-240 Volts
  • 169 Amps
  • 3 Phase
  • 66 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-02290-LFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive

Inverter, 200-240 volt, 3 phase, 60 HP, 169 Amps

Hitachi L700 Series L700-450LFF

MODEL NO. L700-450LFF Features:

  • Easy operation and setup by standard keypad (shown) or optional PC-based
  • ProDriveNext configuration software
  • V/Hz CT & VT, PLUS Sensorless Vector (SLV) control modes
  • Modbus/RTU standard – communication options available for networks such as Ethernet, DeviceNet, LONworks (others planned)
  • Wide range of application-specific functions for optimal performance
    • Auto energy savings function
    • Intelligent terminal system
    • Removable circuit terminals
  • EzSQ Internal PLC-like controller
  • Internal DB transistor up to 30 kW (40 hp)
  • EMI filter integrated up to 160 kW
  • Easy to set up, operate & maintain
  • NEMA1 Conduit Box Optional

Manuals and Specifications:
