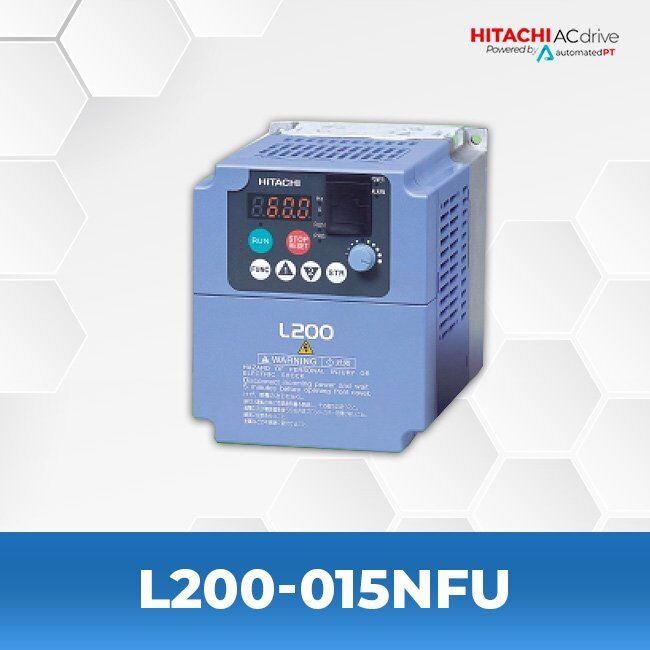

Hitachi L200-015NFU AC Drive

  • Series: L200
  • 2 Horsepower(HP)
  • 1.5 Kilowatt (KW)
  • 200 Volts
  • 7.1 Amps
  • 1/3 Phase
  • 3.97 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacements are 1 phase WJ200-015SF or 3 phaseWJ200-015LF drives. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

1 Phase Replacement Drive
3 Phase Replacement Drive


The Hitachi L200 delivers the cutting-edge functions you need and an ease to install and set up that you’ll love.

Key features include:

Integrated digital kepad with potentiometer
PID control
Logic and output timing functions allowing for more flexible system design
Detachable cooling fan
RS-485 serial port with integrated Modbus-RTU
Unattended start protecion
3-wire control
Analog input wire-break detection
400Hz maximum output frequency
+/- .01Hz frequency accuracy
14 protectivew functions including overload, over-current, and over/under-voltage

Drive Details

Manufacturer
Hitachi

Series
L200

Model
L200-015NFU

Constant/Variable Torque
CT

Horse Power
2 HP

Maximum Amps
8 A

Input
1 or 3 Phase
200-240V

Output
3-Phase
200-240V

Dimensions
Height: 5.12 in
Width: 4.33 in
Depth: 6.14 in

Enclosure
IP20
