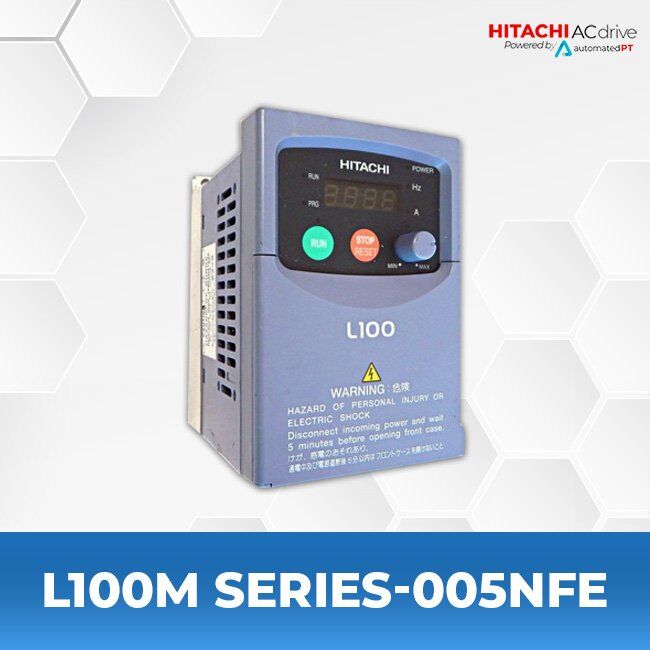

Hitachi L100M Series L100-005NFE AC Drives

  • Series: L100
  • 0.75 Horsepower(HP)
  • 0.55 Kilowatt (KW)
  • 200-240 Volts
  • 3 Amps
  • 1/3 Phase
  • 2.87 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacements are 3 phase NES1-004LB or 1 phase NES1-004SB drive with the NES1-OP Accessory to give the same functionality. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

1PH-Replacement Drive 3PH-Replacement Drive

Inverter, 200-240 Volts, 1/3ph, 1/4HP, 1.4 Amps

Hitachi L100M Series L100-002NFE/NFU AC Drives


  • 115 VAC input and 230 VAC output
  • Easy operation and setup by integrated keypad (shown) standard
  • Enhanced remote keypad and PC-based configuration software compatible
  • Powerful feature set:
    • PID control standard
    • 16 stage multi speed operation
    • Auto restart and stall prevention
    • Intelligent terminal system

Click on the links below to see Drawings and Specs:

Manuals and Specifications:

Specifications Hitachi L100 Specifications
Service Manual Hitachi L100 Service Manual
Quick Reference Guide Hitachi L100 Quick Reference Guide
L100 MFU2 Supplement Manual L100 MFU2 Supplement Manual
L100 MFU2 Quick Reference Guide Hitachi L100 MFU2 Quick Reference Guide
Instruction Manual Hitachi L100 Instruction Manual
L100DN Addendum Hitachi L100DN Addendum
400v Class Dynamic Braking Table Hitachi L100 400vClass Dynamic Braking Table
200V Class External Dynamic Braking Table Hitachi L100 200V Class External Dynamic Braking Table



  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • OPE-Srmini NEMA4X Option Kit


  • Digital Operator (supplied as standard operator on SJ200)
  • Requires ICS-1 or ICS-3 cable for remote mounting to be compatible with the L100M, X200, L200, SJ200, SJ700, SJ300 and L300P drives
