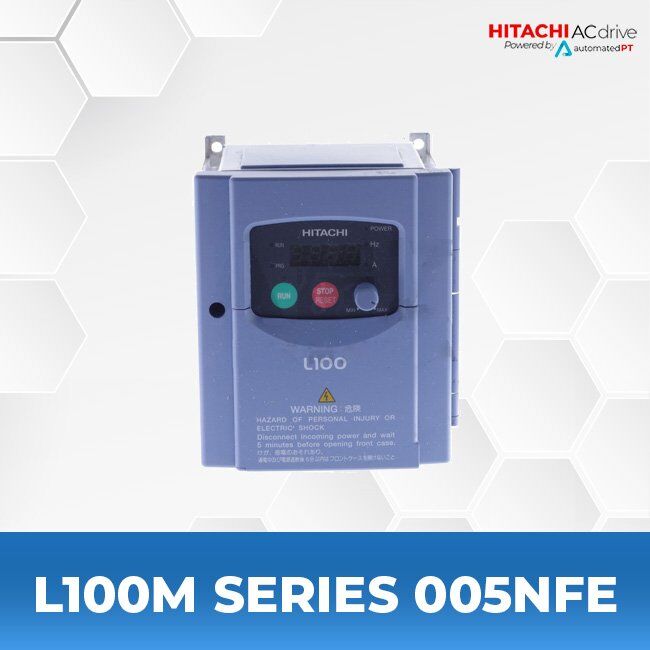

Hitachi L100M Series 005NFE

  • Series: L100M
  • 0.75 Horsepower(HP)
  • 0.55 Kilowatt (KW)
  • 200-240 Volts
  • 3 Amps
  • 1/3 Phase
  • 2.87 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacements are 1 phase WJ200-004SF or 3 phase WJ200-004LF drives. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

1 Phase Replacement Drive
3 Phase Replacement Drive


Inverter, 200 Volts, 1/3ph, 1HP, 4.0 Amps

Hitachi L100M Series 005NFE

Input voltage: 100-115 volt, 1 phase, 1/2-3/4 HP

Features

  • 115 VAC input and 230 VAC output
  • Easy operation and setup by integrated keypad (shown) standard
  • Enhanced remote keypad and PC-based configuration software compatible
  • Powerful feature set:
    • PID control standard
    • 16 stage multi speed operation
    • Auto restart and stall prevention
    • Intelligent terminal system

Click on the links below to see Drawings and Specs:

Manuals and Specifications:

Specifications Hitachi L100 Specifications
Service Manual Hitachi L100 Service Manual
Quick Reference Guide Hitachi L100 Quick Reference Guide
L100 MFU2 Supplement Manual L100 MFU2 Supplement Manual
L100 MFU2 Quick Reference Guide Hitachi L100 MFU2 Quick Reference Guide
Instruction Manual Hitachi L100 Instruction Manual
L100DN Addendum Hitachi L100DN Addendum
400v Class Dynamic Braking Table Hitachi L100 400vClass Dynamic Braking Table
200V Class External Dynamic Braking Table Hitachi L100 200V Class External Dynamic Braking Table


Accessories

$45.00

  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • OPE-Srmini NEMA4X Option Kit

$99.00

  • Remote Digital Operator
  • Requires ICS-1 or ICS-3 cable for remote mounting to be compatible with WJ200 and NES1 drives

Out of stock
$179.00

  • Compatible with SJ700,SJ700B,SJ700D,X200,L100,L100M,L300P
  • Drive Option
  • Converter Cable
  • USB to RS422
