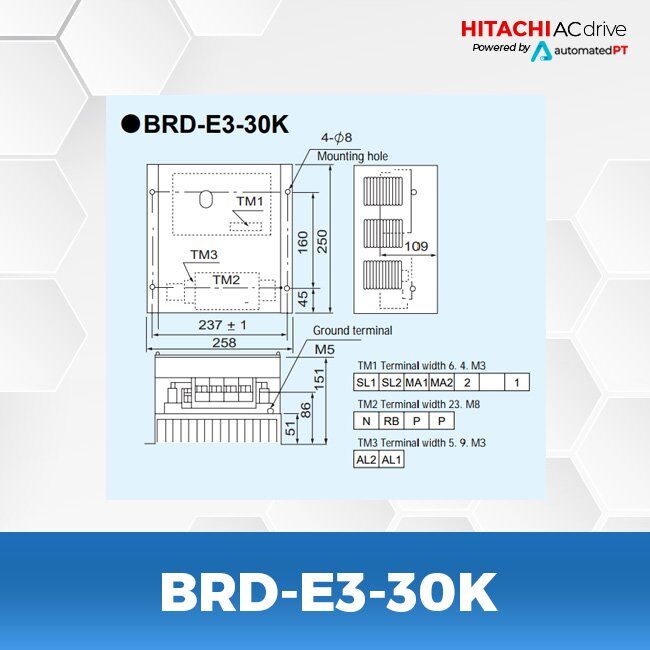

Hitachi BRD-E3-30K

Hitachi BRD-E3-30K

$731.50

14 in stock

  • Accessory: Dynamic Braking Resistor Unit
  • Compatible with: SJ700 / SJ700D 400 V Class
  • Power Rating: 30 kW (40 HP)
  • Duty Cycle: 10% ED, 47 kW Peak Power

SPECIFICATIONS

Model Name BRD-E3-30K
Type Dynamic Braking Resistor Unit
Compatible Inverter Models SJ700 / SJ700D / SJ700B Series
Voltage Class 3-Phase 400 V
Applicable Motor Capacity 30 kW (40 HP)
Resistance Value (R) Approximately 20 Ω
Continuous Power Rating 3.9 kW
Peak Power Rating Approx. 47 kW (10% duty)
Duty Cycle 10% ED (1 s ON / 9 s OFF)
Cooling Method Natural Air Cooling (optional fan-assisted)
Protection Rating IP20 Enclosure
Mounting Style Wall or Panel Mount
Connection Connect between inverter P(+) and RB terminals
Weight Approx. 4.5 kg (9.9 lb)

Manuals and Specifications

Brochure Hitachi SJ700 Series Brochure

SERIES DESCRIPTION

The Hitachi BRD-E3-30K is a braking resistor unit engineered for 400 V class SJ700 Series Inverters. It dissipates regenerative energy generated during deceleration, preventing overvoltage trips and ensuring stable inverter performance in high-inertia load applications.

Features

  • Designed for 30 kW (40 HP) 400 V class inverters
  • Efficient energy dissipation during rapid deceleration
  • Durable IP20-rated enclosure with natural air cooling
  • Compact wall-mountable design for easy integration
  • Complies with Hitachi’s SJ700 inverter protection and duty standards
