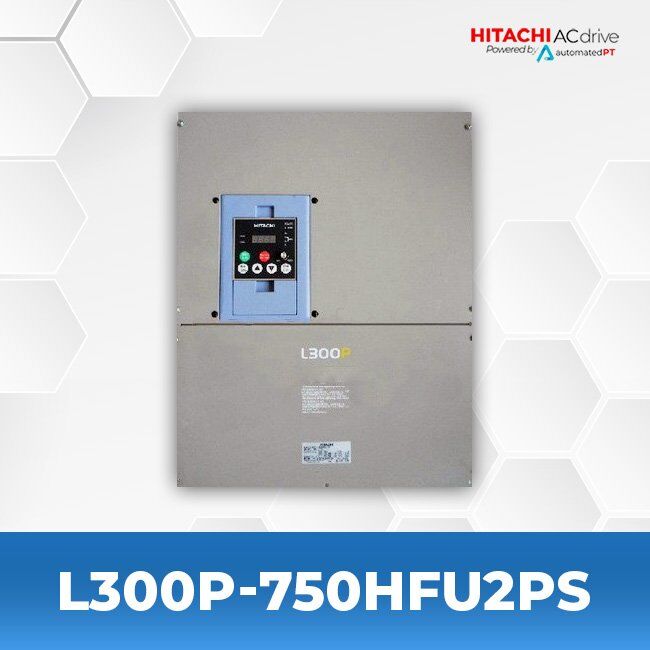

Hitachi AC Drives L300P-750HFU2PS

Hitachi AC Drives L300P

The HiPASS Bypass panel is designed to provide energy savings, reduced harmonic distortion, minimized
down time, and easy interface with Building Automation Systems. The HiPASS panel will allow the user to
operate their system from the L300P drive or directly across the AC input power line.

HiPASS Bypass Panel standard features: • NEMA 1 Design (Side by Side)
• UL Listed 100kA Short Circuit Rating
• Quick Menu Selection
• 5% AC Line Reactor
• Quick Start Up Capability by Keypad
• Easy Access Customer Terminal Strip
• Drive Service Switch
• SC-OPE 3H Keypad (4 line, 20-character LCD display)
• Motor Overload Contactor
• HAND/AUTO Selection
• VFD/OFF/BYPASS switch
• 115VAC Transformer
• Fused Disconnect (through door)
• Write/Copy Capability (SC-OPE 3H)
• RS485 System Resistor Termination
• Terminals for Freeze-stat, Fire-Stat Safety Interlocks
• Purge Speed Selection
• System Power On Light
• Bypass On Light
• 2 Contactor Design – Power/Bypass
• Easy Connection and Selection of BAS Systems
• Safety/Run Enable Override Jumpers Installed

Purchase your Hitachi Nema 3R & Nema 12 Pre-Engineered Panels. COMPLETE LIST

Hitachi NEMA3R/NEMA12 Pre-Engineered Panels include features and benefits:

Pre-engineered models and defined popular options for quick delivery. 7.5 to 150 hp defined models; available up to 600 hp on a quotation basis. Three levels (BASE, STANDARD & BYPASS) with defined options for ease of ordering, simple installation & commissioning. BASE model includes NEMA 3R enclosure, AC input line reactor, Hitachi VFD, thermostatically controlled fans, air filters and terminal blocks for user connections. STANDARD model adds input power disconnect, input fusing, VFD keypad mounted on second inner door. BYPASS model adds 2-contactor bypass arrangement with drive/bypass selector switch.

Pre-Engineered Panels Do Not Receive Free Shipping

Hitachi AC Drive L300P, Hitachi AC Drives, Hitachi VFDs, Hitachi Inverters

Manuals and Specifications:

Instruction Manual	Hitachi L300P Instruction Manual
Brochure	Brochure
