Hitachi AC Drive SJ300-007LFU

  • Series: SJ300
  • 1 Horsepower(HP)
  • 0.75 Kilowatt (KW)
  • 230 Volts
  • 5 Amps
  • 3 Phase
  • 7.7 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-00080-LFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive

The Hitachi SJ300 inverter is an advanced flux vector inverter, energy saving frequency drive. Features Include:

  • Powerful Operation with Advanced Sensorless Vector Control
  • High starting torque of 200%
  • Rotational fluctuation at low speed has been drastically reduced to enhance process stability and precision
  • High torque of 150% at 0Hz domain with a smaller motor by one frame size
  • High torque multi-motor operation
  • On-line/off-line auto-tuning
  • Versatile Functions Encompass More Applications
  • Intelligent input/output terminal system
  • Analog output terminals in addition to the pulse output monitor

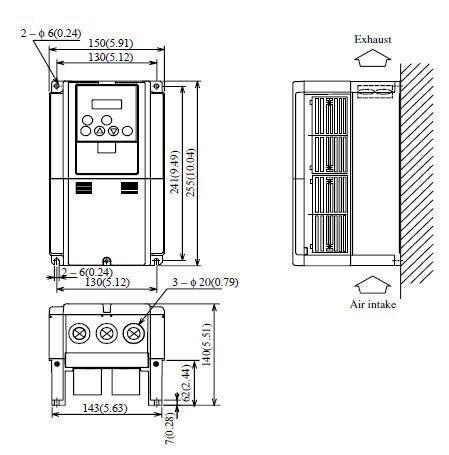

Hitachi Industrial SJ300 Series Catalog Number: Drive Details Manufacturer Hitachi Series SJ300 Model SJ300-007LFU Constant/Variable Torque CT Horse Power 1 HP Maximum Amps 5 A Input 3-Phase 200-240V Output 3-Phase 200-240V Dimensions Height: 10.04 in Width: 5.91 in Depth: 5.51 in Enclosure NEMA 1

Manuals and Specifications:

SJ FB Feedback Option Board Manual (SJ300 Only) Hitachi SJ FB Feedback Option Board Manual (SJ300 Only)
Quick Reference Guide Hitachi SJ300 Quick Reference Guide
Service Manual Hitachi SJ300 L300P Service Manual
Instruction Manual Hitachi SJ300 Instruction Manual
EL Elevator Inverter Instuction Manual Supplement Hitachi SJ300 EL Elevator Inverter Instuction Manual Supplement
Dynamic Braking Selection Chart Hitachi SJ300 Dynamic Braking Selection Chart
Brochure Hitachi SJ300 Brochure
