Hitachi Industrial L300P Series Inverters and AC Variable Speed Drives
Features:
- Easy operation and setup by removable keypad (shown) standard PC-based configuration software and enhanced keypad available.
- Communication options available for networks such as ETHERNET, DEVICENET, PROFIBUS-DP, LONWORKS, Modbus RTU. Wide range of application specific functions for optimal operation
- Auto energy savings function, Intelligent terminal system, Removable circuit terminals, Designed for ease of programming, operation and maintenance
NEMA1 to 40 HP; IP20 above. Optional conduit box required to meet NEMA1. FREE SHIPPING on the L300P Series Inverters (ground service using our choice of carrier, within the contiguous United States only) Hitachi L300P Series Catalog Numbers:
Drive Details
Manufacturer
Hitachi
Series
L300P
Model

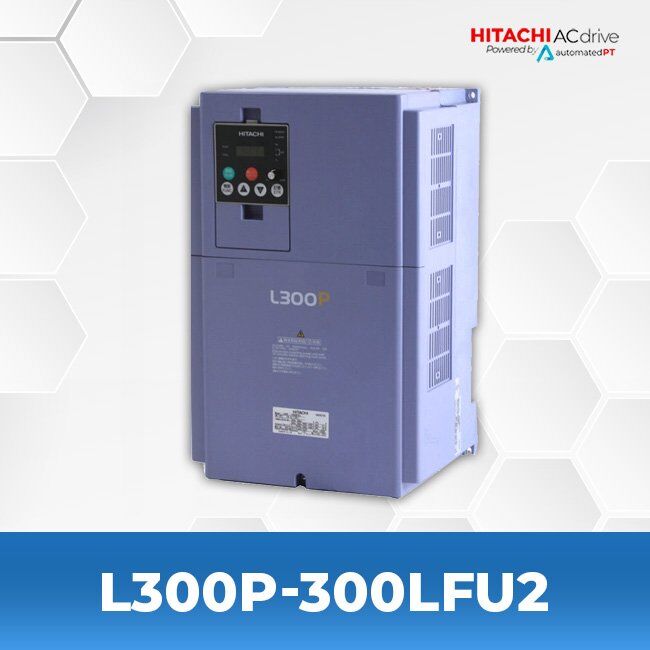

L300P-300LFU2
Constant/Variable Torque
VT
Horse Power
40 HP
Maximum Amps
113 A
Input
3-Phase
200-240V
Output
3-Phase
200-240V

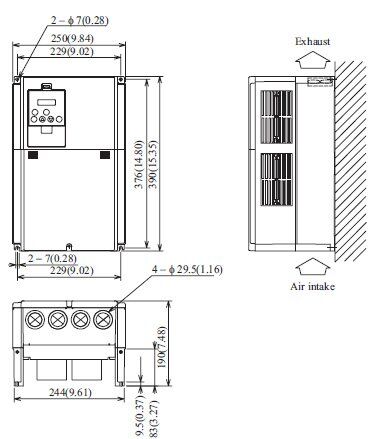

Dimensions
Height: 15.35 in
Width: 9.84 in
Depth: 7.48 in
Enclosure
NEMA 1
Manuals and Specifications:
Instruction Manual | Hitachi L300P Instruction Manual | |
Brochure | Brochure |
Hitachi AC Drive L300P, Hitachi AC Drives, Hitachi VFDs, Hitachi Inverters
