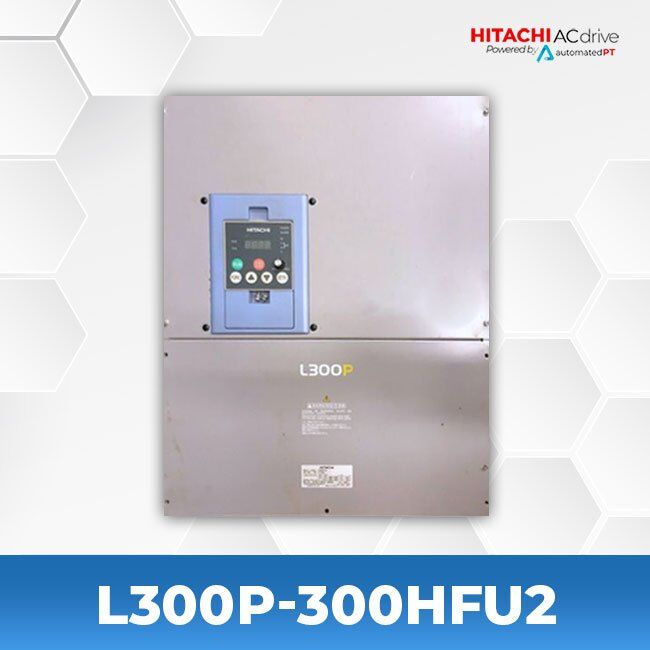

Hitachi AC Drive L300P-300HFU2

  • Series:L300P
  • 40 Horsepower(HP)
  • 30 Kilowatt (KW)
  • 400 Volts
  • 113 Amps
  • 3 Phase
  • 26.4 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the P1-00770-HFUF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Hitachi Industrial L300P Series Inverters and AC Variable Speed Drives

Features:

  • Easy operation and setup by removable keypad (shown) standard PC-based configuration software and enhanced keypad available.
  • Communication options available for networks such as ETHERNET, DEVICENET, PROFIBUS-DP, LONWORKS, Modbus RTU. Wide range of application specific functions for optimal operation
  • Auto energy savings function, Intelligent terminal system, Removable circuit terminals, Designed for ease of programming, operation and maintenance

NEMA1 to 40 HP; IP20 above. Optional conduit box required to meet NEMA1.

FREE SHIPPING on the L300P Series Inverters (ground service using our choice of carrier, within the contiguous United States only) Hitachi L300P Series Catalog Numbers:

Drive Details

Manufacturer
Hitachi

Series
L300P

Model
L300P-300HFU2

Constant/Variable Torque
VT

Horse Power
40 HP

Maximum Amps
57 A

Input
3-Phase
380-480V

Output
3-Phase
380-480V

Dimensions
Height: 15.35 in
Width: 9.84 in
Depth: 7.48 in

Enclosure
NEMA 1

Manuals and Specifications:

Instruction Manual Hitachi L300P Instruction Manual
Brochure Brochure
