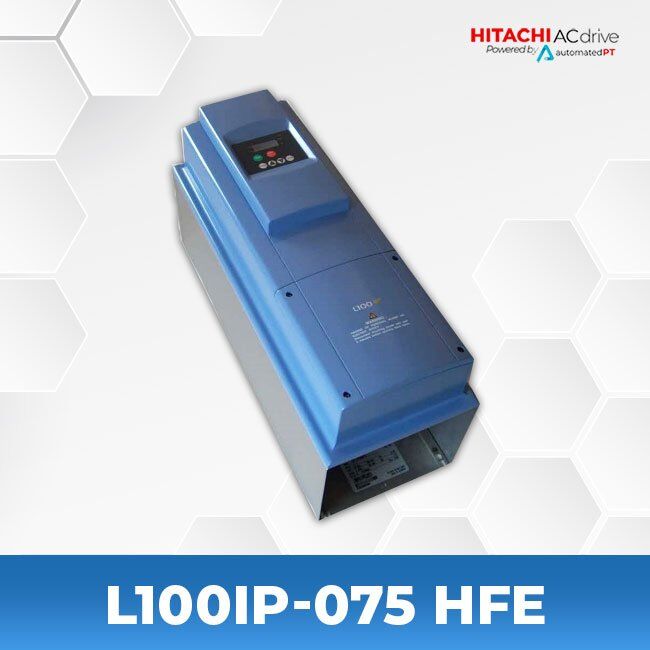

Hitachi AC Drive L100IP-075 HFE

  • Series:L100IP
  • 10 Horsepower(HP)
  • 7.5 Kilowatt (KW)
  • 400 Volts
  • 16 Amps
  • 3 Phase
  • 9.6 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the WJ200-075HF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive

These new frequency inverter Series IP54 on the basis of the successful develoment of today´s inverter L100 Series, are particularly suitable for use in food industries, air-conditioning technology (heating, ventilating, cooling), water treatment and cleaning as well as in maney other stand-alone applications

Besides operation in connection with constant and variable. Load the voltage-to-frequency control alsoallos setting of parameter for a freely definable voltage-to-frequency characteristic, significantly expanding the area of application of these frequency inverter.

Key Features

  • Power:
    0.37-7.5kW
  • PID control
  • Digital panel
  • Input for motor thermistor
  • Built-in RS422 interface
  • Automatic adjustment of the voltage
  • Built-in EMC filter Class B
  • Serial port connection PROFIBUS, LonWorks or DeviceNet (optional)
  • CE Compliance

FREE SHIPPING on the L100IP Series AC Drives (ground service using our choice of carrier, within the contiguous United States only)

Manuals and Specifications:

Brochure Hitachi L100IP Brochure

Accessories

Hitachi 4X-KITmini

$45.00

  • Compatible with NES1,SJ700,SJ700B,SJ700D,WJ200,X200, L100,L100M,L300P
  • Drive Option
  • OPE-Srmini NEMA4X Option Kit

Add to cart

Hitachi OPE-SRmini

$99.00

  • Remote Digital Operator
  • Requires ICS-1 or ICS-3 cable for remote mounting to be compatible with WJ200 and NES1 drives

Add to cart
Out of stock

Hitachi USB-CONVERTERCABLE

$179.00

  • Compatible with SJ700,SJ700B,SJ700D,X200,L100,L100M,L300P
  • Drive Option
  • Converter Cable
  • USB to RS422
